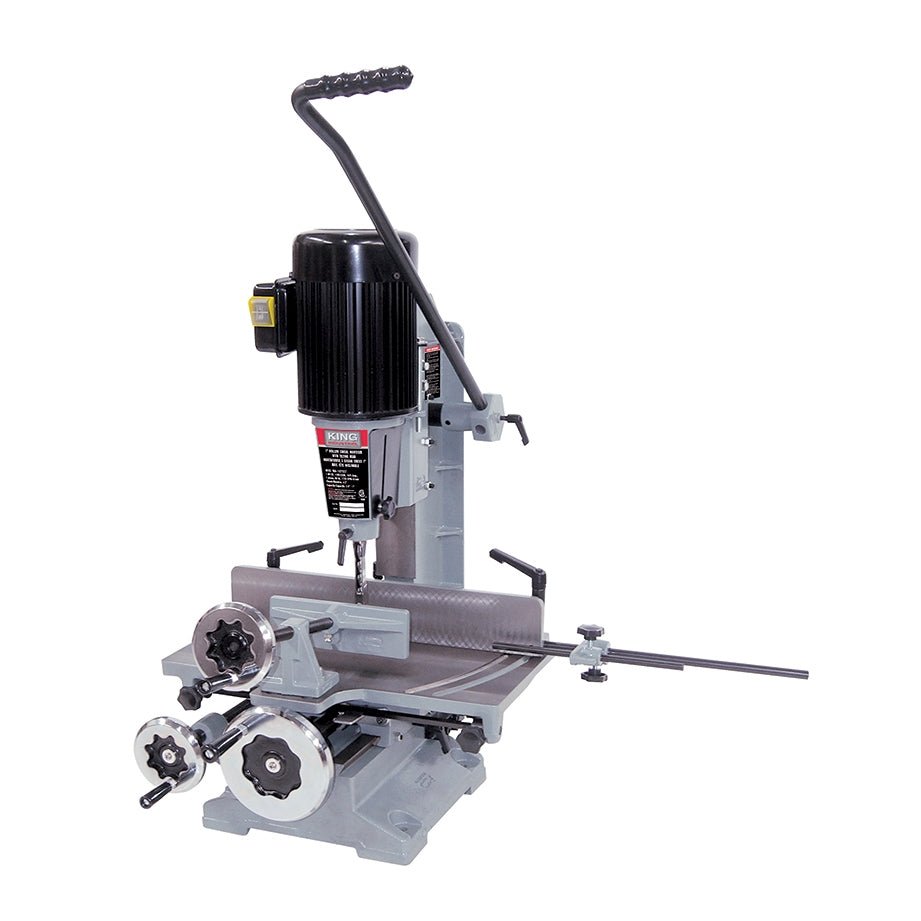

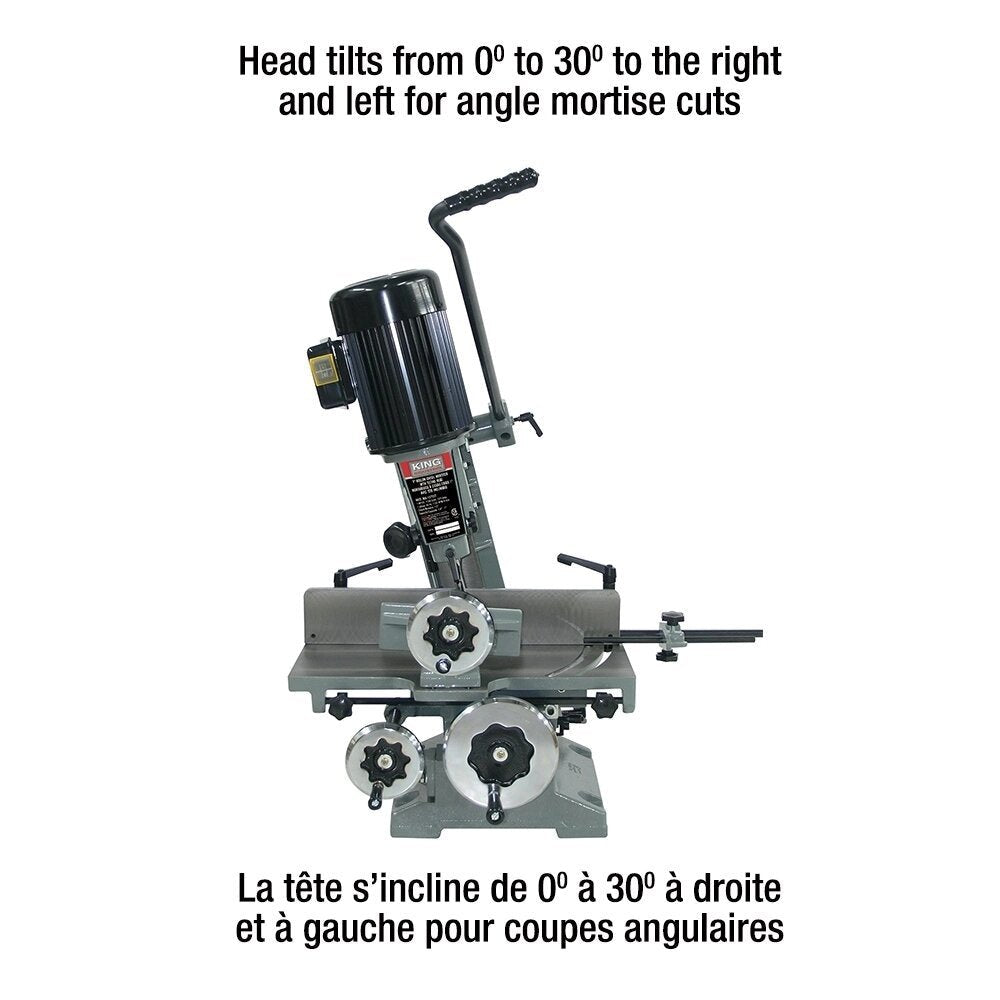

King Canada MA-1075ST - 1'' HOLLOW CHISEL MORTISER WITH TILTING HEAD

King CanadaSKU: MA-1075ST

Price:
Sale price$2,499.00
Stock:
Re-stocking soon

Description

1'' HOLLOW CHISEL MORTISER WITH TILTING HEAD


  • Powerful 1 HP 110V/220V dual voltage motor
  • 1/4" to 1" chisel and bit capacity
  • Large longitudinal and transversal 19" x 12-1/2" sliding table prevents unnecessary repositioning and reclamping of the workpiece
  • Gas head cylinder for smooth and controlled cuts
  • Rack and pinion gears move entire head for maximum leverage and positive feed control
  • Adjustable depth and height stops
  • Includes chisel adapter bushings which accept 5/8" and 3/4" diameter chisel shanks
  • Multi-position feed handle
  • Comes complete with mortising chisel and bit set (1/4", 3/8", 1/2" and 3/4"), chisel adapter bushings, 1/2" chuck and key
  • MODEL MA-1075ST
  • CHISEL CAPACITY 1/4" - 1"
  • CHUCK CAPACITY 1/2"
  • MAXIMUM CHISEL STROKE 8"
  • MAXIMUM DISTANCE FENCE TO CENTER CHISEL 3"
  • MAX. DISTANCE CHISEL TO TABLE (HEAD EXTENDED)6-1/2" - 10-3/16"
  • SLIDING TABLE SIZE 19" x 12-1/2"
  • SLIDING TABLE LONGITUDINAL TRAVEL 14"
  • SLIDING TABLE TRANSVERSAL TRAVEL 3"
  • MOTOR110V/220V, 10/5 Amp., 1 phase, 60 Hz
  • PRE-WIRED110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT35-1/4" x 26-1/2" x 48-1/4" / 220 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT21-1/2" x 21-1/2" x 31-1/4" / 235 lbs
