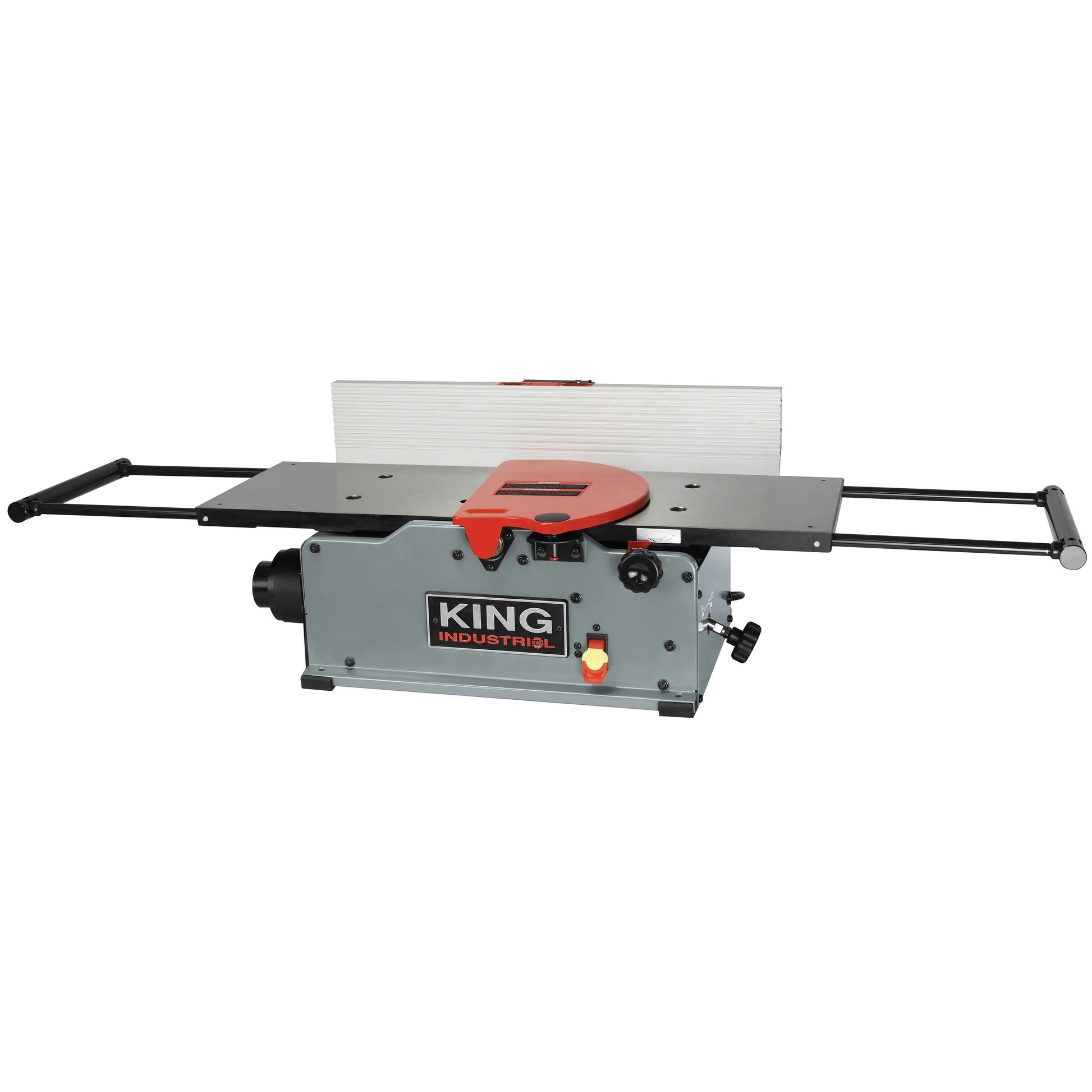

Description
- Powerful 1 HP motor

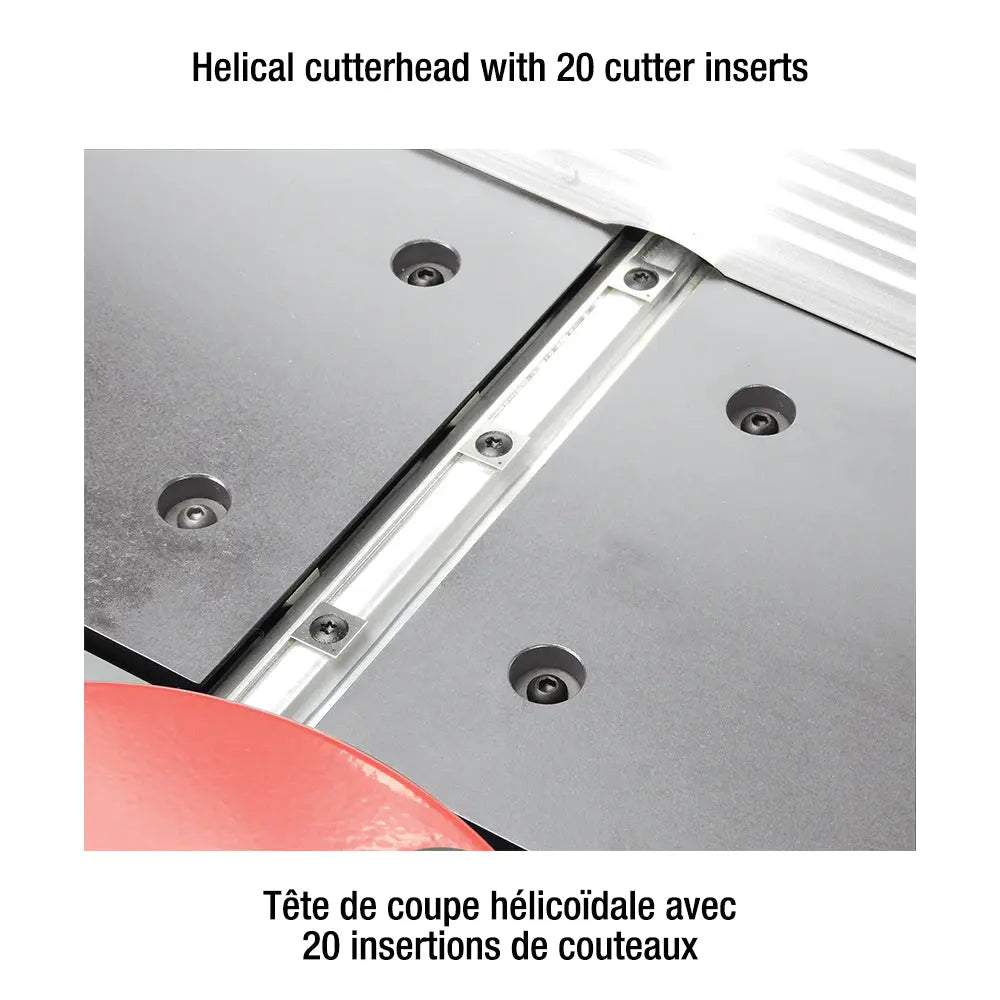

- Helical cutterhead for a superior finish
- Parallelogram table adjustment system
- Cast-iron tables with retractable extensions
- Aluminum adjustable tilting fence
- Spring-loaded retractable safety guard
- Dual 2-1/2" and 4" dust chute for dust collector hook-up

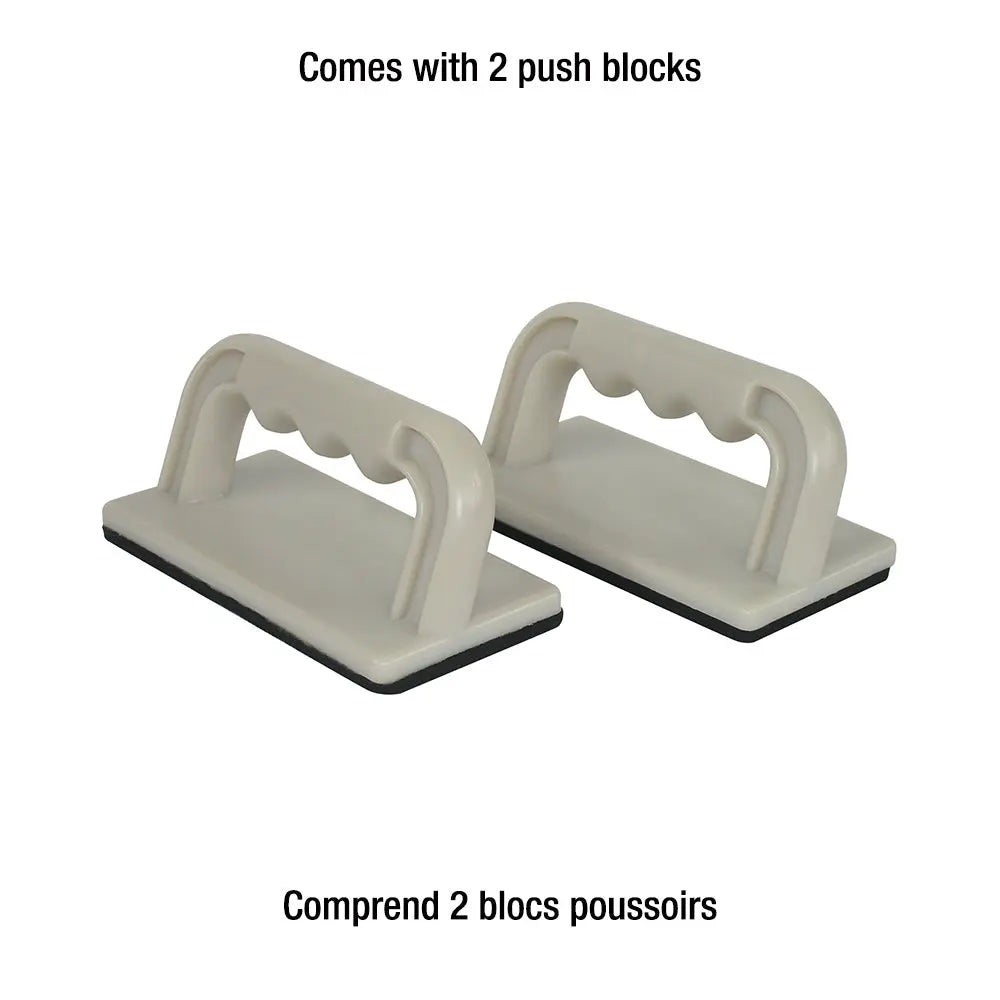

- Comes 2 safety push blocks, cutter insert adjustment Torx key and adjustment hex. keys
-
MODELKC-10HJC -
CAPACITY10" -
DEPTH OF CUT CAPACITY1/8" -
CUTTERHEAD SPEED12,000 RPM -
TABLE SIZE10" x 30-1/2" -
TABLE SIZE WITH EXTENSIONS10" x 53-1/2" -
TABLE HEIGHT (BASE TO TABLE TOP)8-1/2" -
FENCE SIZE4-3/8" x 24" -
MOTOR1 HP, 12 Amp. -
VOLTAGE120V, 1 phase, 60 Hz -
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT53-1/2" x 20-1/2" x 13-1/4" / 74 lbs -
PACKAGE DIMENSIONS (LXWXH) / WEIGHT36-1/2" x 17-1/4" x 13" / 82 lbs -
UPC7 72995 01742 3
