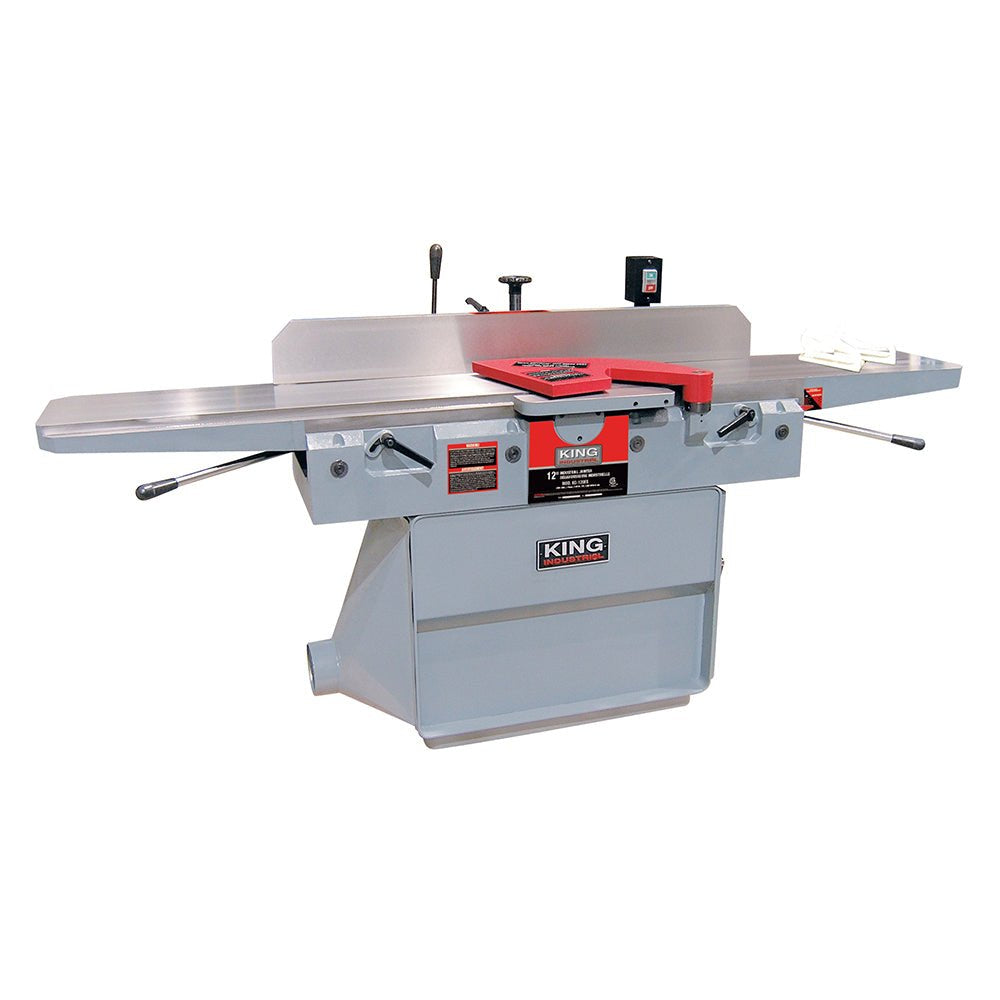

KING CANADA KC-120FX-5 - 12" INDUSTRIAL JOINTER (550V, 3 PHASE)
KING CANADA KC-120FX-5 - 12" INDUSTRIAL JOINTER (550V, 3 PHASE)
The KING CANADA KC-120FX-5 is a rugged 12" industrial jointer designed for high-volume, precision woodworking in professional and industrial settings. Powered by a heavy-duty 3 HP, 550V, 3-phase motor, this jointer delivers the strength and consistency needed to flatten and edge large, dense stock with ease. It features extra-long, precision-ground cast iron tables for maximum support and accuracy, along with a robust center-mounted cast iron fence that adjusts easily for bevel operations. The machine is equipped with a traditional 3-knife cutterhead, delivering smooth, clean cuts and straightforward knife replacements. Built for durability, accuracy, and long-term reliability, the KC-120FX-5 is an essential workhorse for serious woodworking operations.
Features
- Powerful 3 HP motor
- Parallelogram table adjustment system
- 3 knife cutterhead allows rapid cutting while producing a superior finish
- Precision ground cast-iron tables
- Lever actuated infeed table, with lock handle, for quick and easy height adjustments
- Imperial/Metric depth-of-cut scale
- Easy access push-button on/off switch is conveniently positioned behind and above the table
- Connect a dust collection system to its 5" dust hood
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place

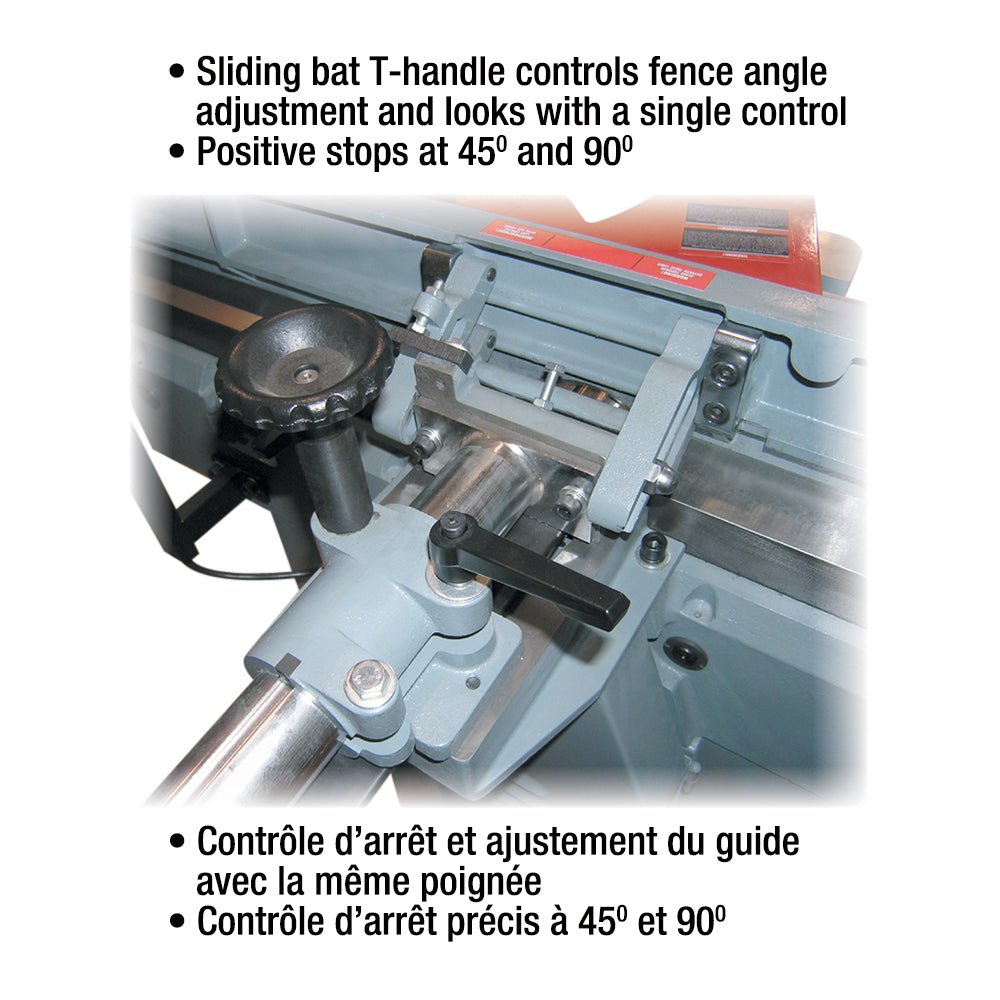

- Sliding bar T-handle controls fence angle adjustment and locks with a single control
- Includes 2 safety push blocks
Specifications
- Capacity: 12"
- Cutterhead speed: 5,000 rpm
- Diameter of the cutterhead: 3-7/8"
- Rabbeting capacity: 3/4" x 12"
- Table size: 84" x 13"
- Fence size: 36" x 5"
- Motor: 3.8 amp.
- Voltage: 550v, 3 phase, 60 hz
- Assembled dimensions (LxWxH) / weight: 84" x 40" x 43" / 706 lbs
- Packaging dimensions (LxWxH) / weight: 88-7/8" x 29-1/2" x 40-5/8" / 920 lbs
