Description

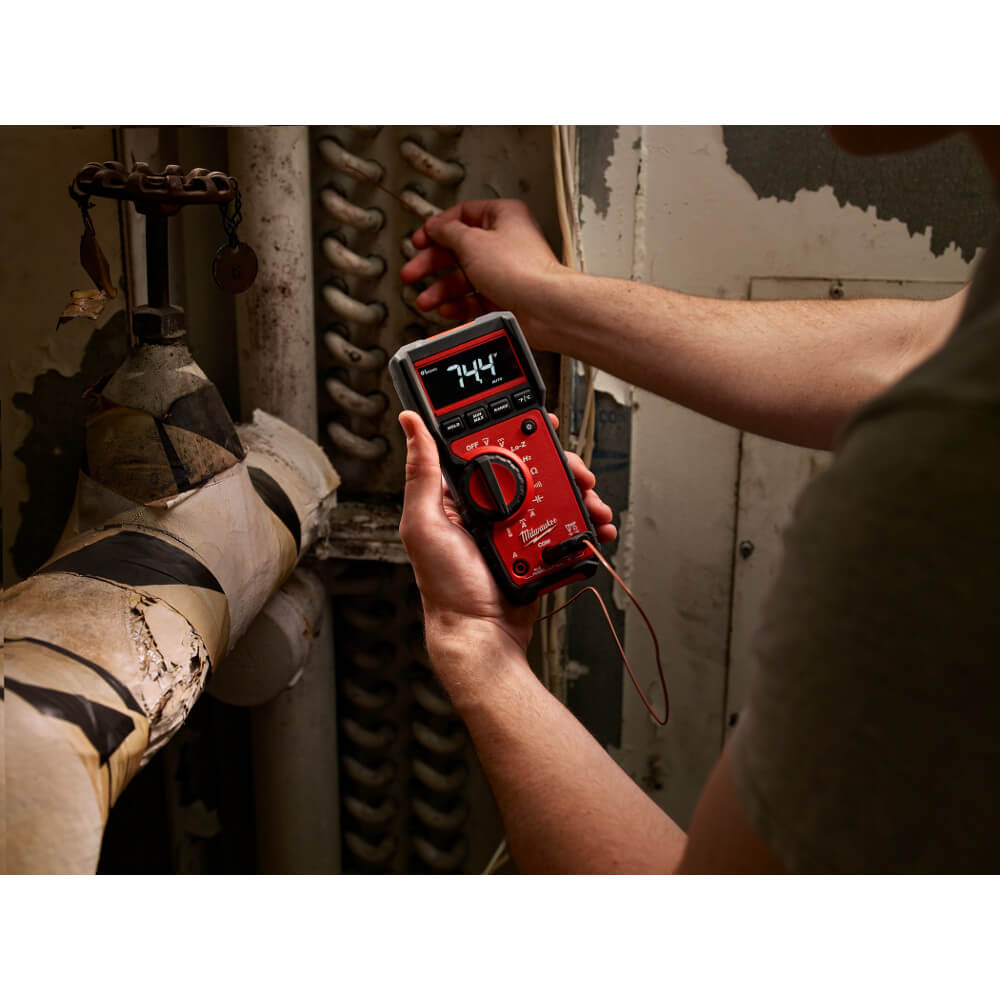

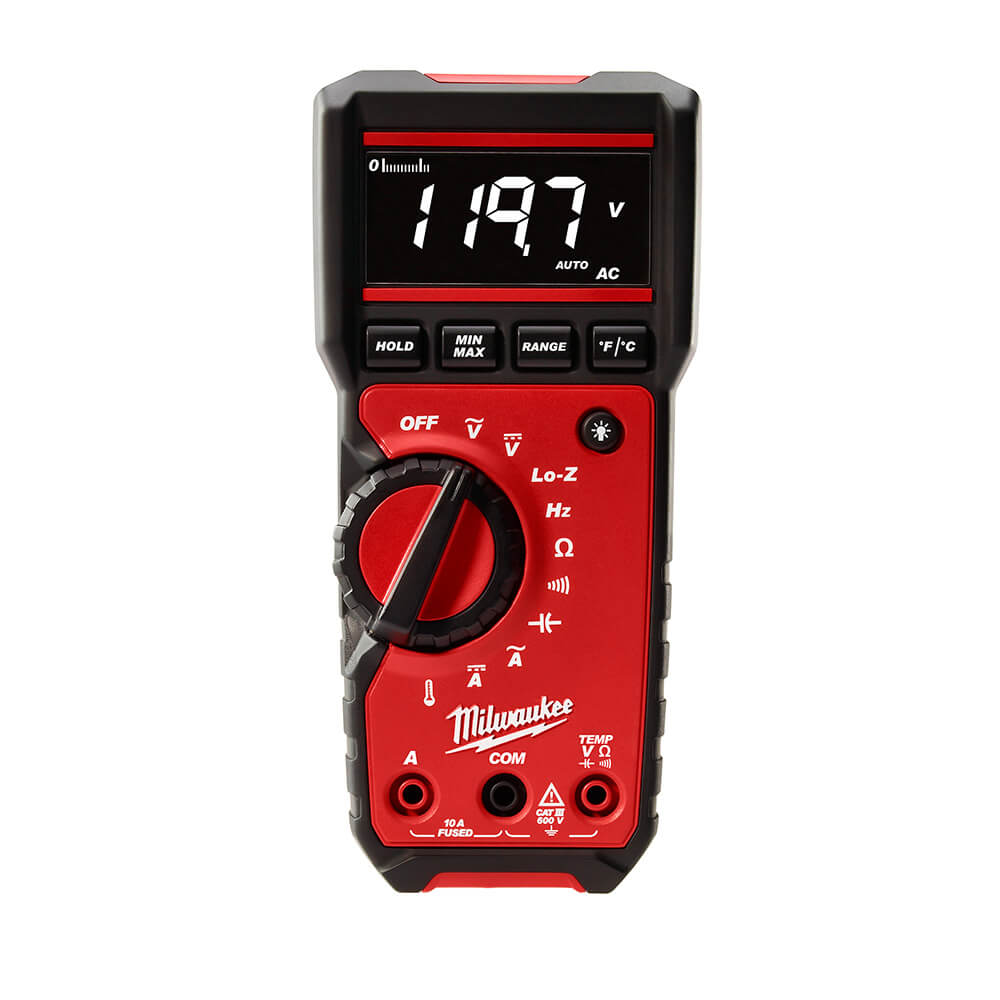

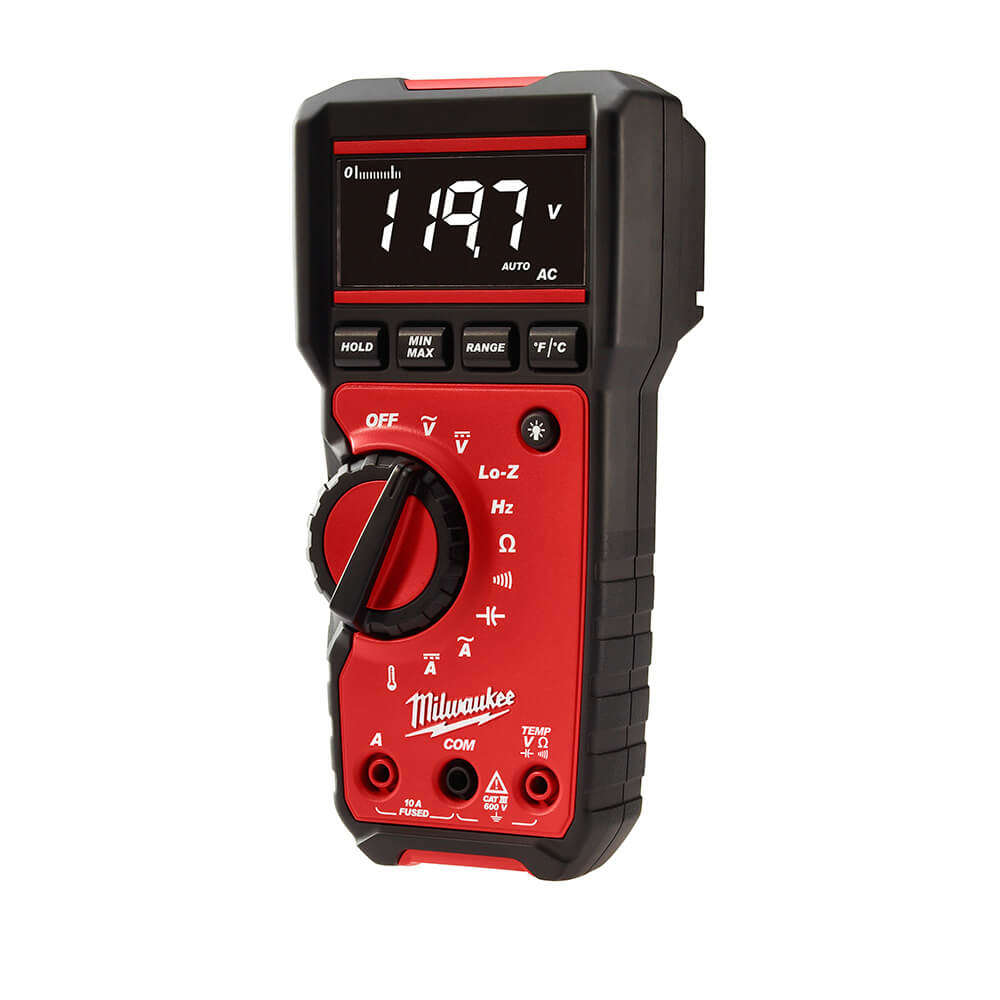

The Milwaukee digital multimeter is a heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional electrician, the 2217-20 offers rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and over-molded dial for easy one handed use. Additionally, the new model meets the safety specifications required by the electrical user.
Features
- Wide voltage range to 600 V AC/DC
- Auto range to millivolts
- True-Rms for accurate measurement in all applications
- Lo-z measurement to eliminate ghost voltage
- Frequency measurements from 10 Hz to 50 kHz
- Contact temperature measurement from -40°F to 752°F
- Current measurement to 10 A AC/DC
- High contrast, white on black display with backlight for easy reading
- Rugged over-molding increases durability and user grip
Includes
(1) Digital Multimeter with Test Leads; (2) AA Batteries
Warranty
5 Years
Specifications
| Digital/Analog: | Digital |
| Temperature Range: | -40 deg F - 752 deg F (-40 deg C - 400 deg C) |
| Display Backlight: | Yes |
| Calibration Needed: | Yes - Recommend Calibration Service Once Every Year |
| Battery Composition: | Alkaline |
| Operating Temperature Range: | -40°F to 752°F |
| Battery Life: | 240 |
| Frequency Range: | 10 Hz - 50.00 kHz |
| Resistance Capable: | Yes |
| Multiple On-Screen Displays: | Yes |
| Container Type: | Box |
| DC Capable: | Yes |
| Number of Ranges: | 3 |
| Frequency Capable: | Yes |
| Min/Max/Avg Feature: | Yes |
| TRMS: | Yes |
| HOLD MIN MAX: | Yes |
| Additional Contents: | Batteries |
| Current AC DC: | 10 |
| AC Capable: | Yes |
| Instrument Frequency Counter Range: | 10 Hz - 50 kHz |
| Accessory Attachment: | Magnetic Meter Holder |
| Battery Quantity and Size: | (2) AA Batteries |
| Capacitance Capable: | Yes |
| Battery Size: | AA |
| Rugged Overmolding: | Yes |
| Continuity: | Audible |
| Capacitance (nF): | 1000 |
| Number of Batteries Required: | 2 |
| Measures/Detects: | Voltage |
| Resistance Range: | 40MO |
| Category Rating: | III |
| Duty Cycle Capable: | Yes |
| Display Type: | Digital |
| Temperature Capable: | Yes |
| Number of Functions: | 12 |
| Bar Graph: | Yes |
| Case Color: | Black; Red |
| Color Finish: | Black; Red |
| Material *: | Plastic |
| Weight (lb): | 1.37 |
| Amps (A) *: | 10 |
