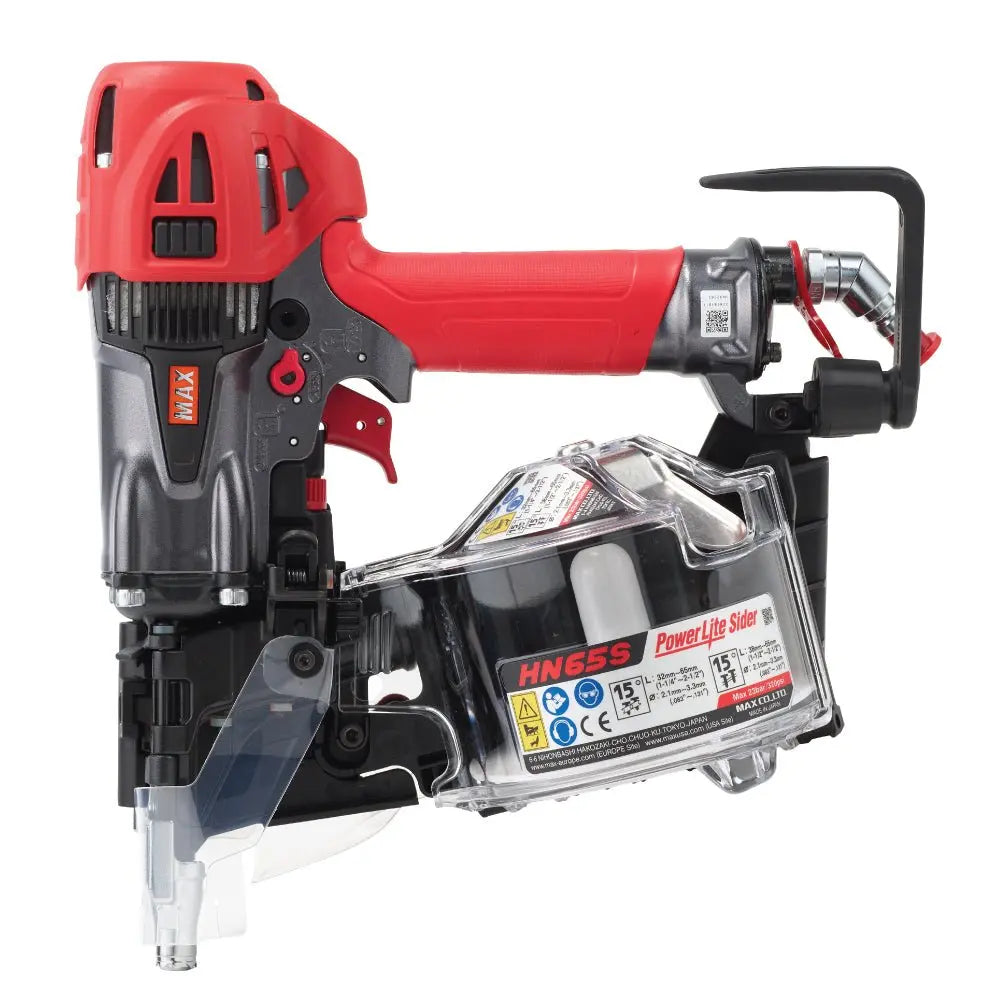

Max HN65S - PowerLite® High Pressure Decking, Sheathing & Siding Coil Nailer up to 2-1/2

The PowerLite® HN65S is a top of the line, safety equipped high pressure siding and decking nailer. It can be used for applications such as exterior siding, floor decking, sheathing and subflooring. The HN65S includes interchangable contact noses, giving users the ability to shoot a wide range of nails. The dynamic firing option modes allow users to change between bump and single fire without the hassle of making manual adjustments. Furthermore, the anti-double fire trigger helps safeguard from multiple shots being fired which could pose a hazardous injury to the user and others around. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can perform safe operations.

Applications

• Siding
• Decking
• Sheathing
• Exterior trim
• Subflooring

FEATURES

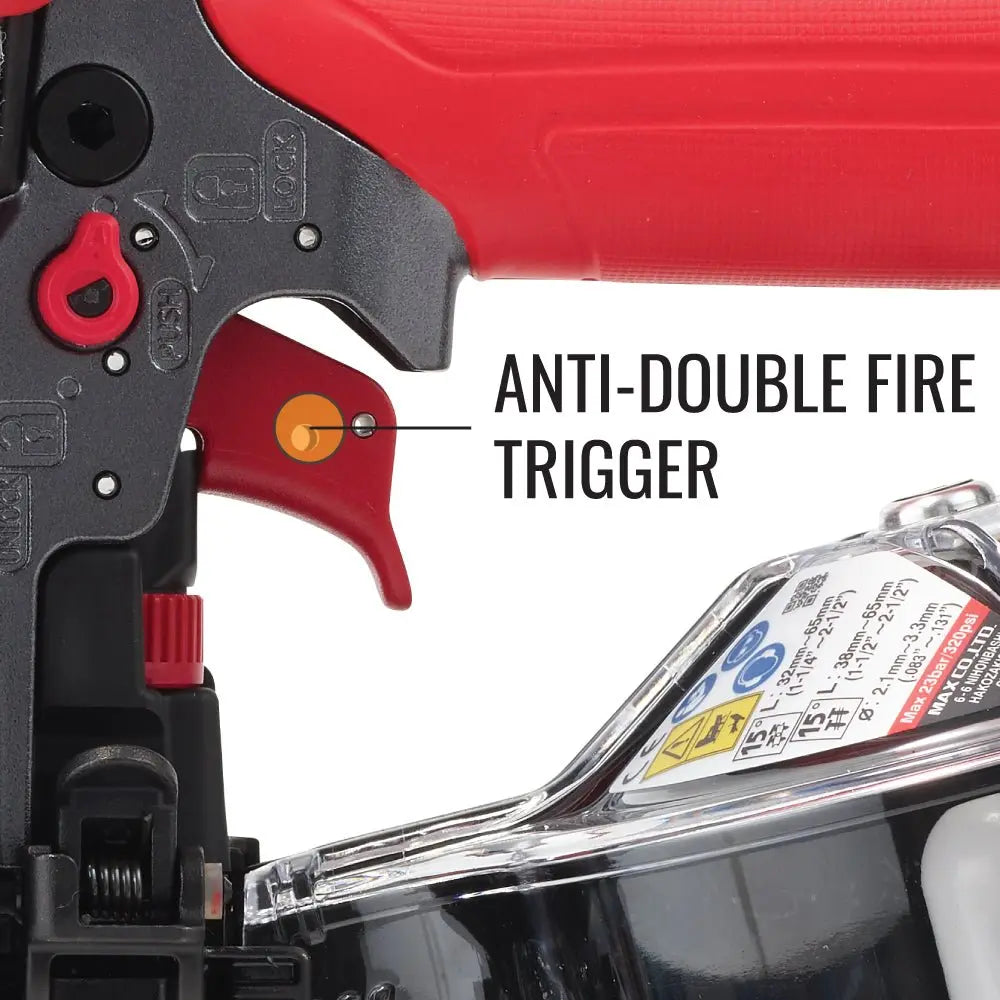

SAFETY TRIGGER

Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire modes no adjustment to the tool is necessary.

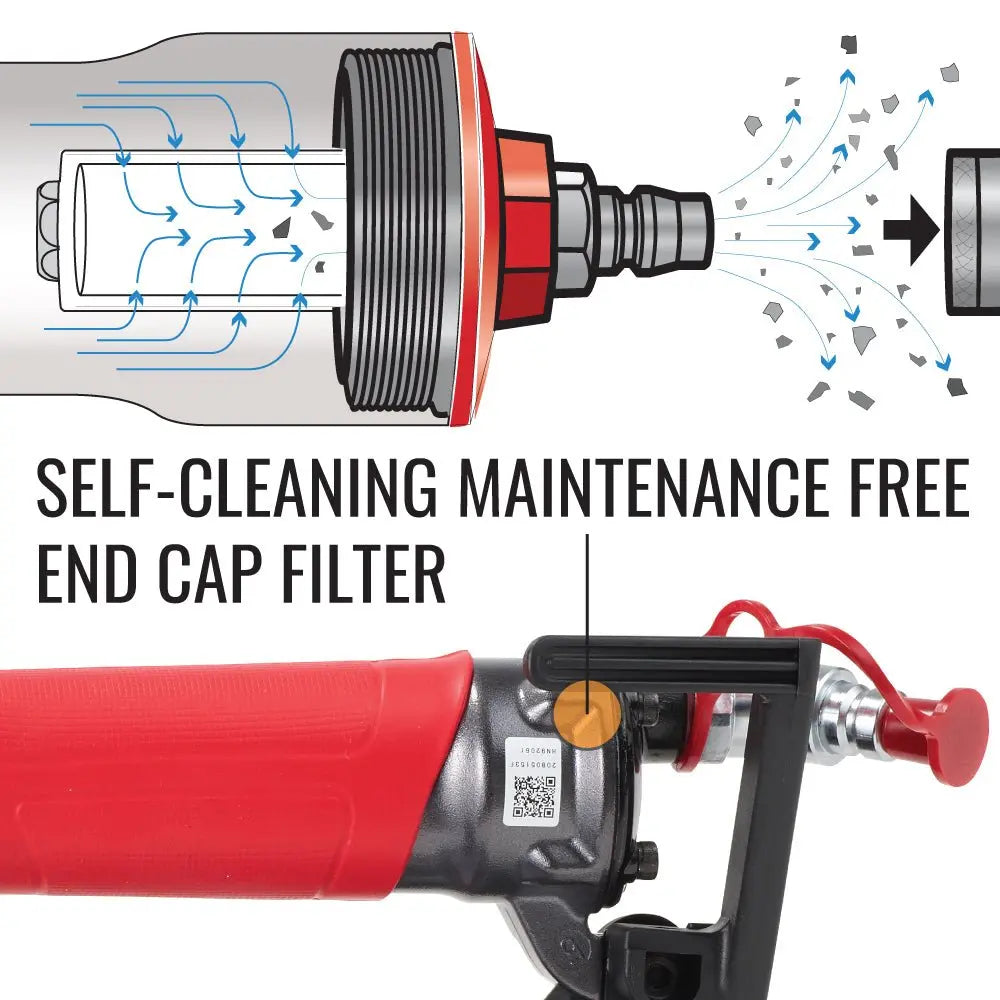

SELF-CLEANING FILTER FOR RELIABLE OPERATIONS

MAX's patented maintenance free end cap filter prevents foreign substances from entering the tool. The inside of the tool is kept clean so the internal components last longer. The filter also has a self-cleaning feature. Foreign substances are ejected automatically from the tool when the air hose is disconnected.

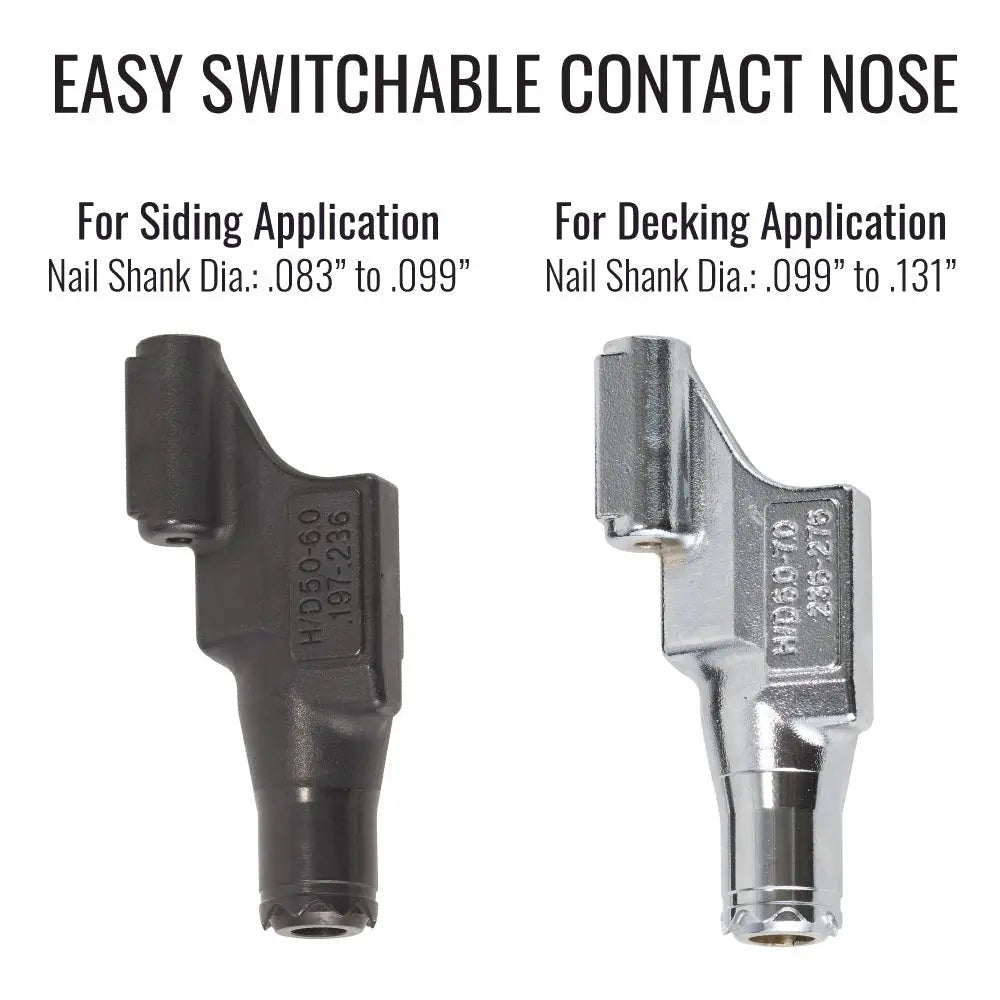

SHOOT A WIDE VARIETY OF NAILS

The MAX HN65S comes with 2 easily detachable contact noses. One for siding and the other for decking applications. This feature allows the HN65S to shoot between .083" to .131" nails.

• REDUCED RECOIL TRIGGER SYSTEM
  MAX engineered and integrated a unique recoil trigger system to help alleviate the bump fire action and soften the recoil for a more comfortable use of the tool.
• REDUCED RECOIL TRIGGER SYSTEM
  Weighing only 4.6 lbs makes operations extremely comfortable for longer periods of time.

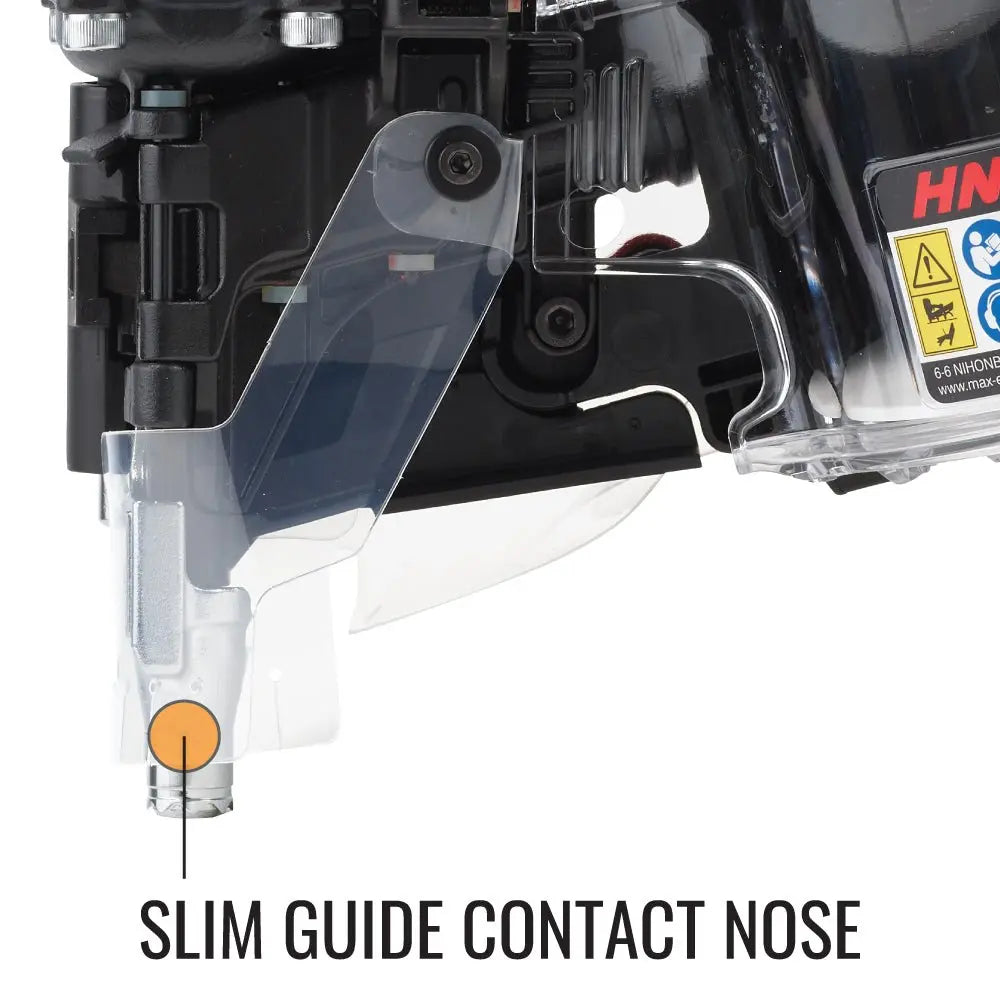

• ELIMINATE DRIVER MARKS
  Slim contact arm guides the nail to reduce misfiring and driver marks.

SPECIFICATIONS

WEIGHT	4.6 lbs
DIMENSIONS	12(H) x 5(W) x 11-3/4"(L)
MINIMUM OPERATION PRESSURE	170 PSI
MAXIMUM OPERATION PRESSURE	320 PSI
AIR INLET SIZE	7/16"
MAGAZINE CAPACITY	250 to 400

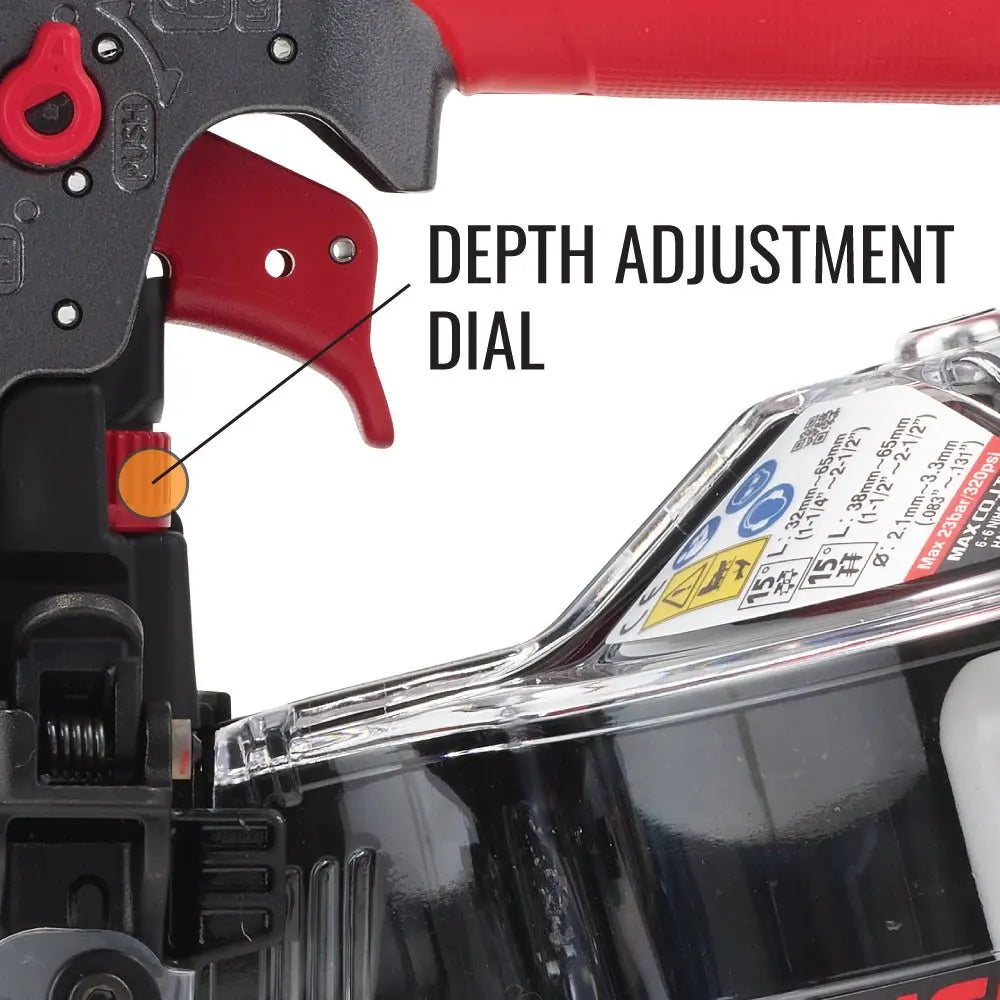

DEPTH CONTROL	Yes
JAM CLEARING	No
TRIGGER TYPE	Anti-Double Fire Trigger
AIR CONSUMPTION (FT3/CYCLE)	0.06
ACCESSORIES	Safety glasses, Nose attachment, Carry case

FASTENERS

COLLATION TYPE	Wire, Plastic
NAIL GUN ANGLE	15
STRIP OR COIL	Coil
NAIL GAUGE/STAPLE GAUGE	Flat wire welded nails and flat plastic sheet collated nails
MINIMUM FASTENER SIZE	1-1/4"
MAXIMUM FASTENER SIZE	2-1/2"
MINIMUM NAIL DIAMETER	.083"
MAXIMUM NAIL DIAMETER	.131"
