Description
Features
- Powerful 1 HP 120V motor
- Adjustable upper/lower ball bearing blade guide system
- Large 21-3/8" x 15-5/8" tilting table with rack & pinion adjustment
- Flexible LED light increases workpiece visibility

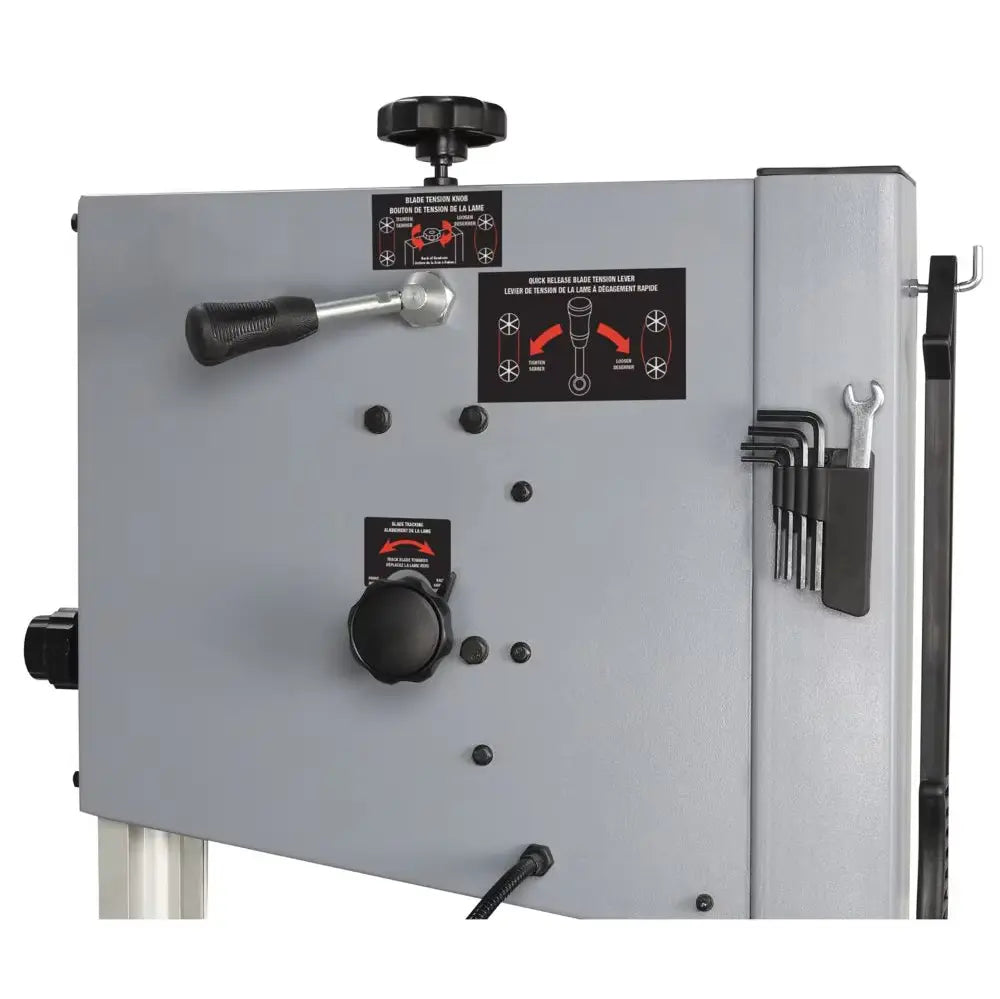

- Belt tension adjustment knob
- Rack & pinion height adjustment system
- Circle cutting guide for diameters up to 27-1/2"
- Dust chute accepts 2", 3" and 4" dust collector hoses
Includes
- Cast aluminum miter gauge,
- Rip fence with 5" high face,
- Push stick,
- Adjustment wrench
- Hex keys
Specifications
- Model: KC-1402FX
- Cutting capacity frame to blade: 14"
- Maximum depth of cut: 8-3/4"
- Table size: 21-3/8" x 15-5/8"
- Table height from floor: 40-1/2"
- Blade size: 100-5/8" x (1/8" - 1") x 0.025"
- Motor: 1 hp
- Amperage: 9.5 amp.
- Voltage: 120v, 1 phase, 60 hz
- Speeds: 2 (1476, 3280) sfpm
- Assembled dimensions (LxWxH) / weight: 30" x 22-3/4" x 67-3/4" / 166 lbs
- Packaging dimensions (LxWxH) / weight: 50-7/8" x 22-7/8" x 18-3/8" / 170 lbs
