Description
Description

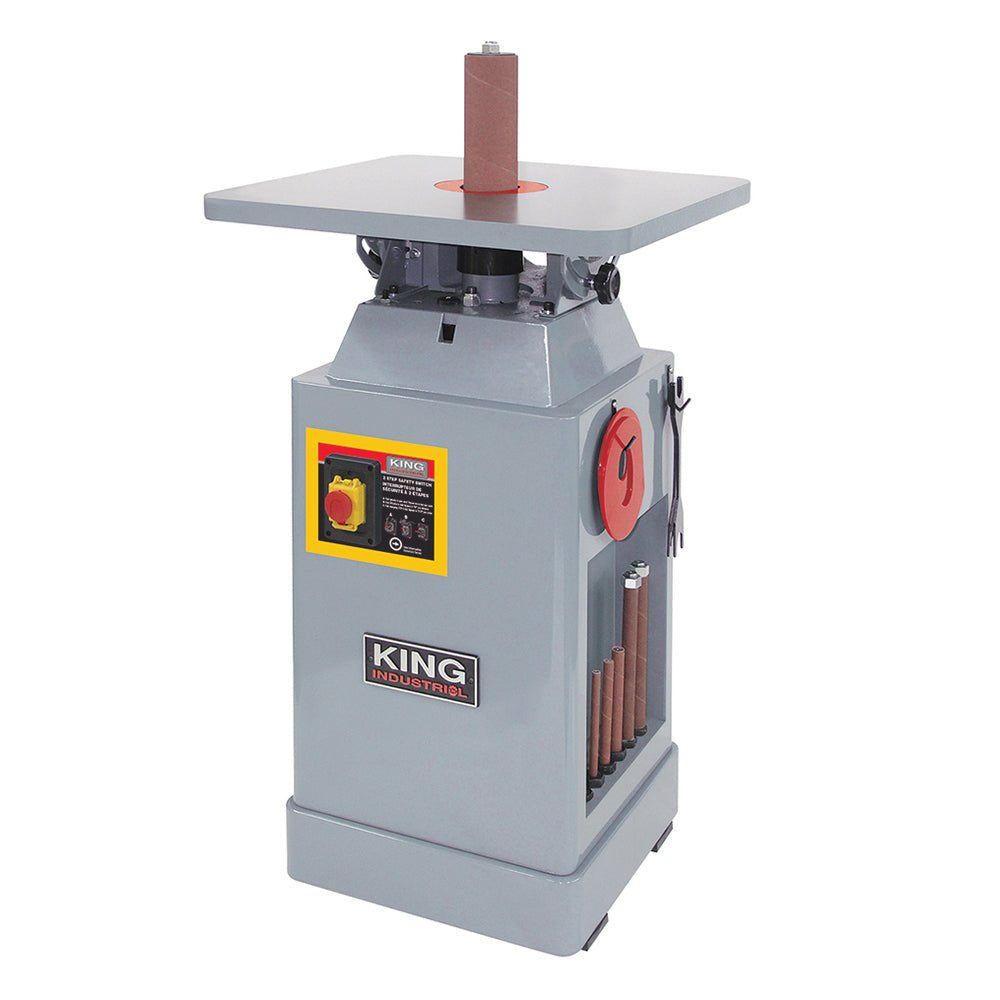

The KC-OVS-FX3 is designed for intricate contour sanding operations. It features a 2 step activation safety switch with line voltage interruption in case of power failure, heavy-duty precision ground cast-iron tilting table, 1" to 4" rubber drums that can be fitted on both ends for full use of the entire spindle, a 4" dust chute for dust collector hook-up, and a heavy-duty oil bath gearbox with oil level sight gauge.
Features
- Designed for intricate contour sanding operations
- 2 Step activation safety switch with line voltage interruption in case of power failure
- Heavy-duty cast-iron tilting table is precision ground
- 1" to 4" rubber drums can be fitted on both ends for full use of the entire spindle
- 4" Dust chute for dust collector hook-up
- Heavy-duty oil bath gearbox with oil level sight gauge
- 10 interchangeable spindles (1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9" and 4" x 9")
- Includes 3 interchangeable table inserts and adjustment keys
Specifications
- Model: KC-OVS-FX3
- Oscillations per minute: 75
- Oscillations stroke: 1-1/2"
- Spindle drum length: 10 (5" to 9")
- Spindle drum diameter: 1/4" to 4"
- Spindle speeds: 1,725 rpm
- Table size: 24-1/4" x 24-1/4"
- Motor: 10 amp. @ 110v, 5 amp. @ 220v
- Voltage: 110/220v, 1 phase, 60 hz
- Pre-wired at: 110v
- Assembled dimensions (LxWxH) / weight: 24-1/4" x 24-1/4" x 47-1/4" / 285 lbs
- Package dimensions (LxWxH) / weight: 26" x 26" x 44-1/2" / 320 lbs
