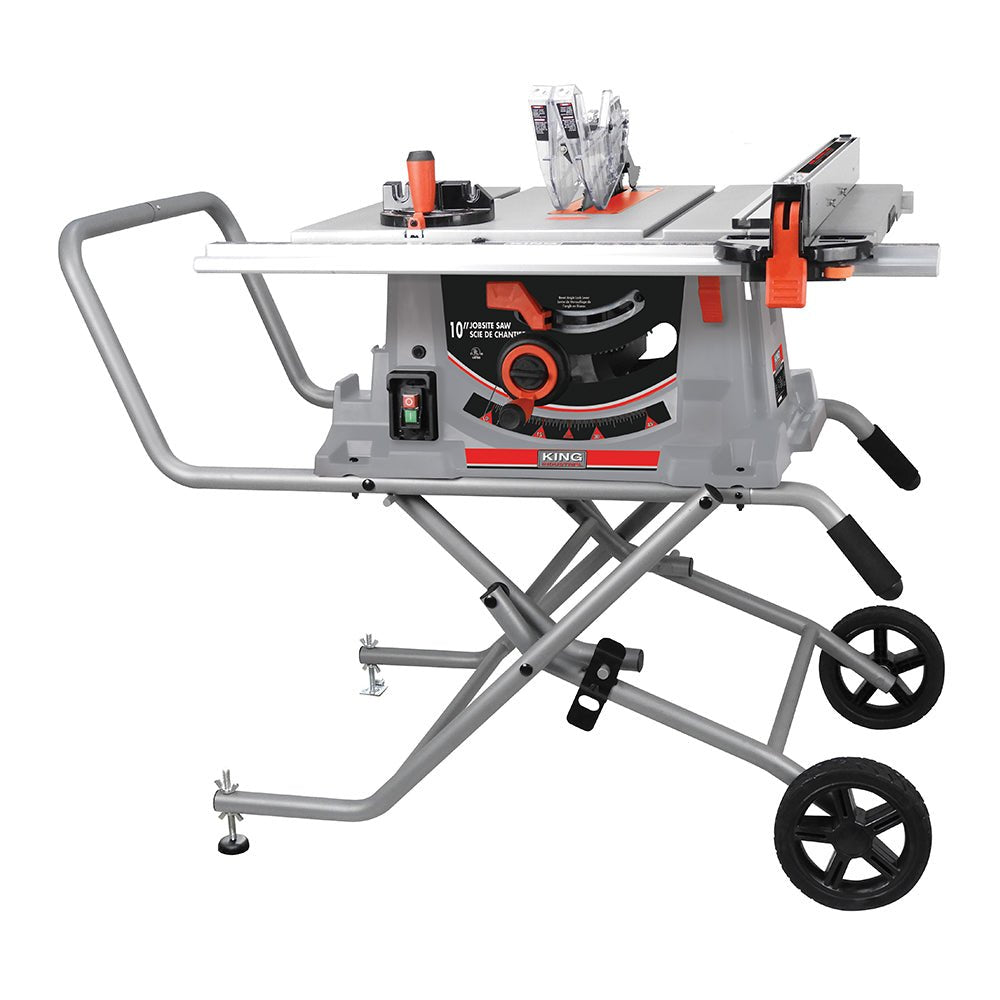

Description
Features
- Powerful 15 Amp. heavy-duty motor with reset
- Large 22-1/4" x 28-3/4" cast aluminum table with extendable rails and table allowing up to 25" rip capacity to the right of the blade
- Electromechanical safety switch with line voltage interruption
- Folding stand with large 8" wheels for portability
- Low profile fence extension for cutting thin and narrow stock
- All in one height/bevel adjusting handwheel with blade height lock and micro bevel angle adjustment
- On-board storage secures rip fence, miter gauge, blade guard, anti-kickback fingers, extra blades, push stick and blade wrenches during transport
- Blade tilts 0° to 45° with detents for versatile angle cutting
- Table has writable surface insert to mark sides of blade for cut alignment
- 2-1/2" dust port for connection to standard shop vacuum
- Comes with 10" x 40 tooth general purpose blade, rip fence, miter gauge, Standard and Dado table inserts, push stick and wrenches
- Double insulated
Specifications
- Model: LKC-5100NS
- Blade diameter: 10"
- Depth of cut at 45°: 2-1/2"
- Depth of cut at 90°: 3-1/2"
- Table size: 28-3/4" x 39-1/2" x 22-1/4"
- Diameter of arbor: 5/8"
- Arbor speed: 4,400 rpm
- Motor: 15 amp.
- Voltage: 120v, 1 phase, 60hz
- Assembled dimensions (LxWxH) / weight: 57-3/4" x 29-1/2" x 41-3/4" / 70 lbs
- Packaging dimensions (LxWxH) / weight: 39-3/4" x 31-1/8" x 17" / 75 lbs
