Description
- Powerful 3/4 HP, 8.6 Amp. motor

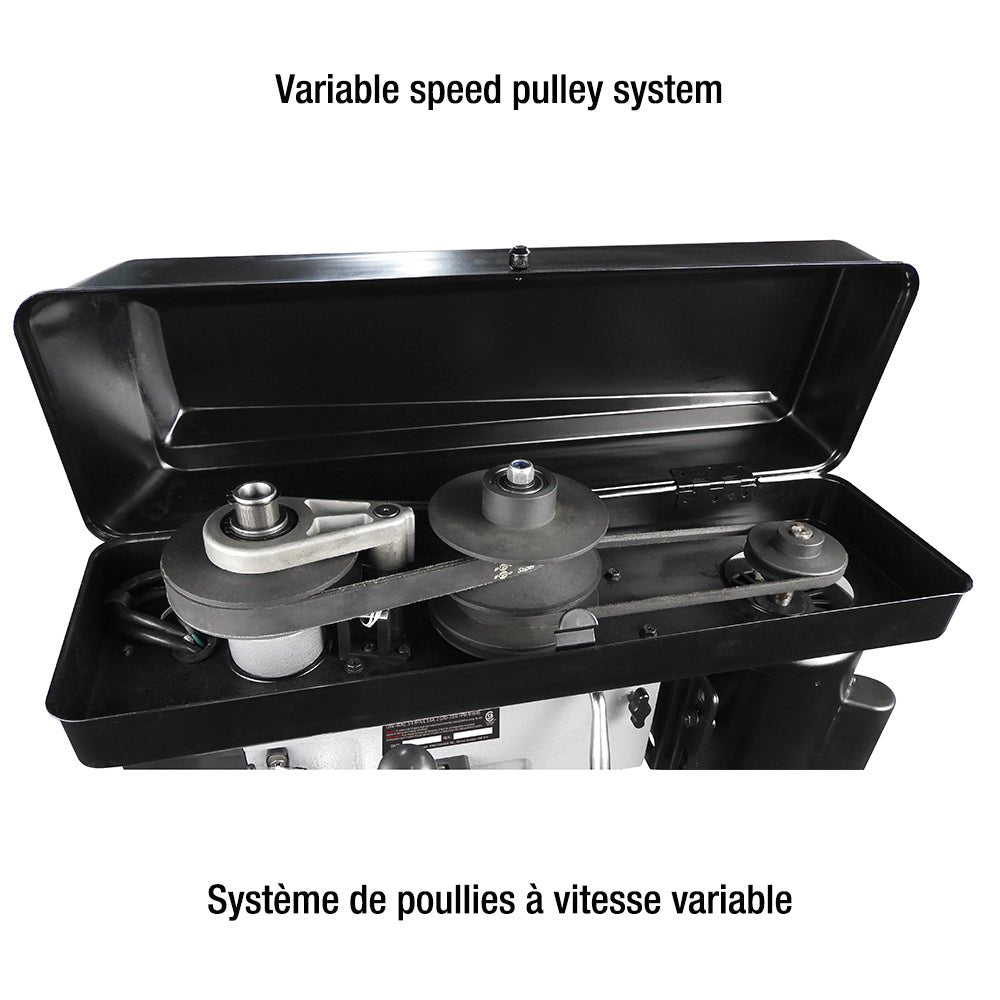

- Mechanical variable speed system with 2 speed ranges, 280-1100 RPM for metal and 900-3300 RPM for wood
- 4" stroke capacity allows this drill press to drill workpieces up to 4" thick

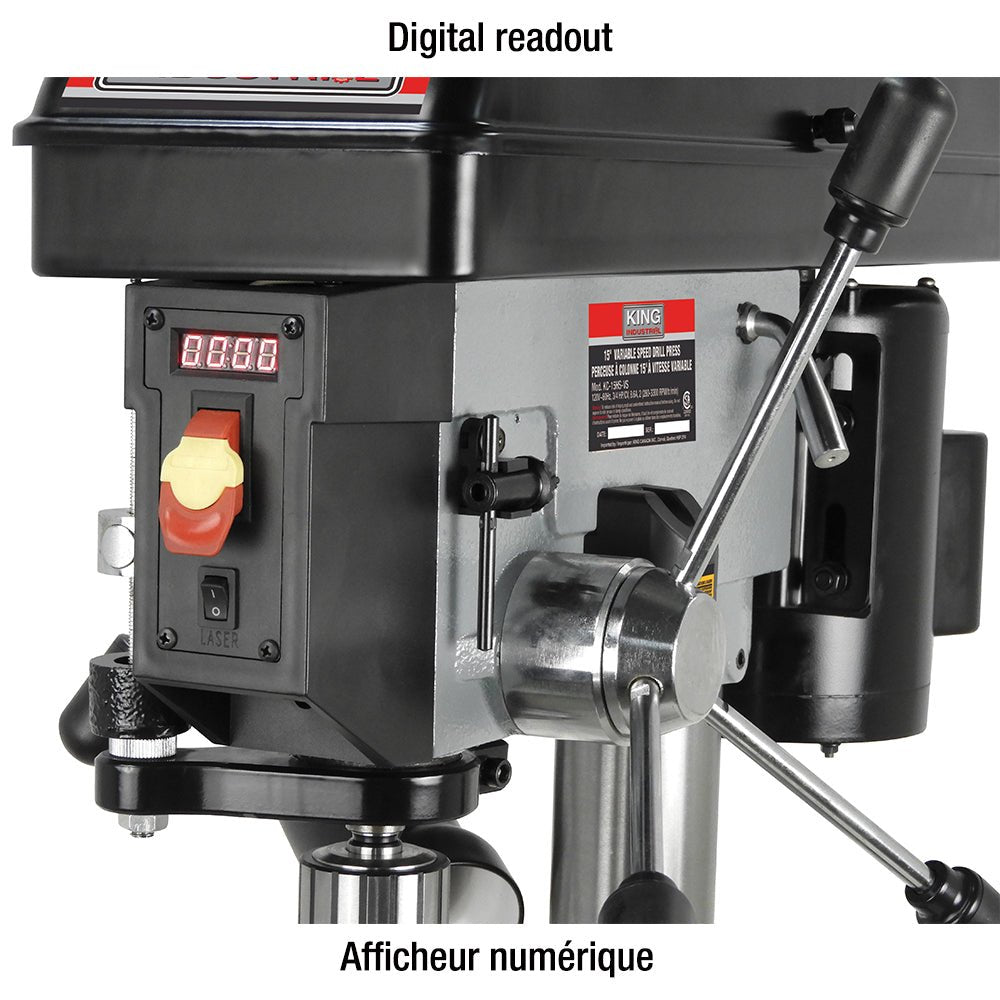

- Digital readout for precise spindle speed

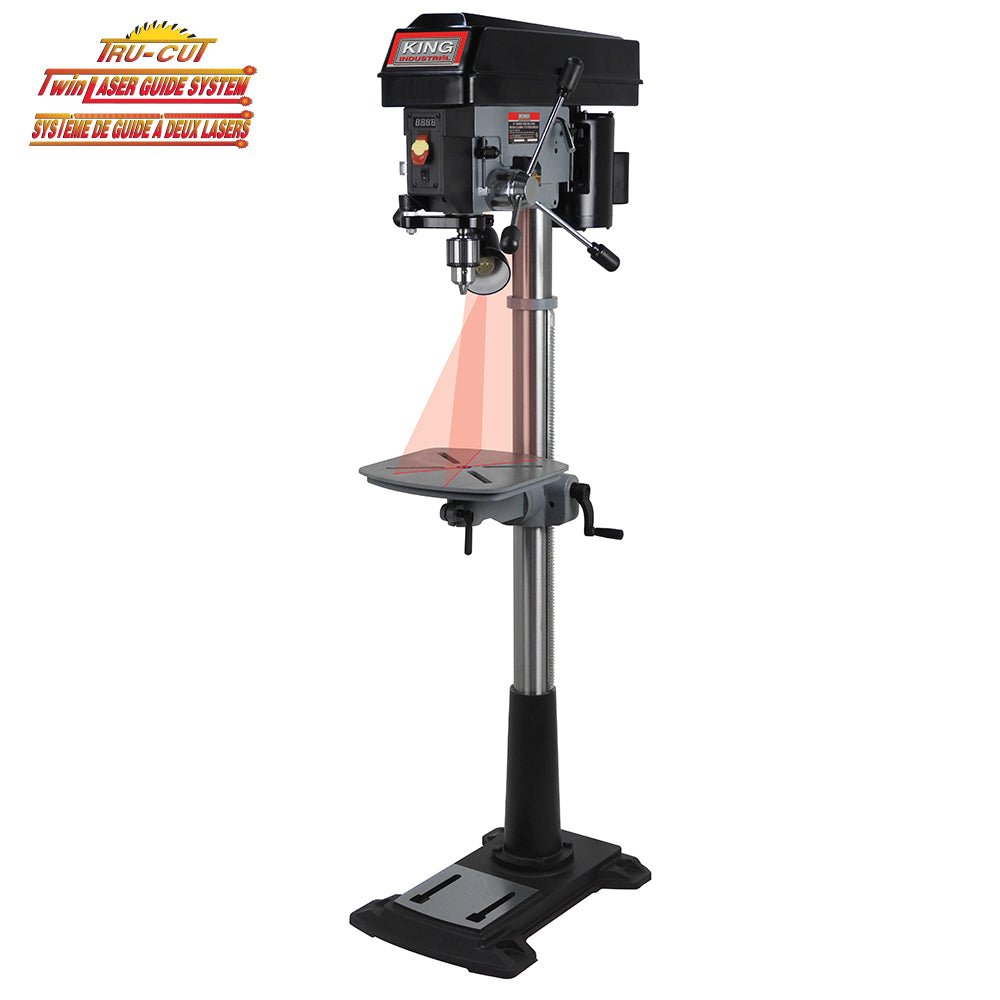

- Dual intersecting adjustable laser guides
- Accepts up to 5/8" shanked drill bits
- Positive depth stop for quick and easy adjustment of the spindle travel
- Flexible worklight illuminates the work area for maximum visibility
- Comes with 5/8" drill chuck, chuck key, onboard chuck key storage and adjustment hex. keys
MODELKC-15HS-VS
CAPACITY5/8"
CHUCK SIZE5/8"
SWING15"
MAX. DISTANCE CHUCK TO COLUMN7-1/2"
MAX. DISTANCE CHUCK TO TABLE25"
STROKE4"
TABLE SIZE12" x 12"
SPINDLE TAPERMT #2
VARIABLE SPEEDS2 (280 - 1,100 / 900 - 3,300) RPM
TABLE T-SLOTS9/16"
MOTOR/VOLTAGE8.6 Amp. @ 120V, 60 Hz, 1 phase
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT14-3/4" x 25" x 64" / 155 lbs
PACKAGING DIMENSIONS (LXWXH) / WEIGHT55-1/2" x 22-1/2" x 11-1/4" / 160 lbs
UPC7 72995 01707 2
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
CanadaWorth the price
Been drilling a lot through thick steel, doing a great job so far. The speed adjustment without having to move the straps is very welcome. Really is a good unit for the price, comes with an adjustable laser and led worklight.
