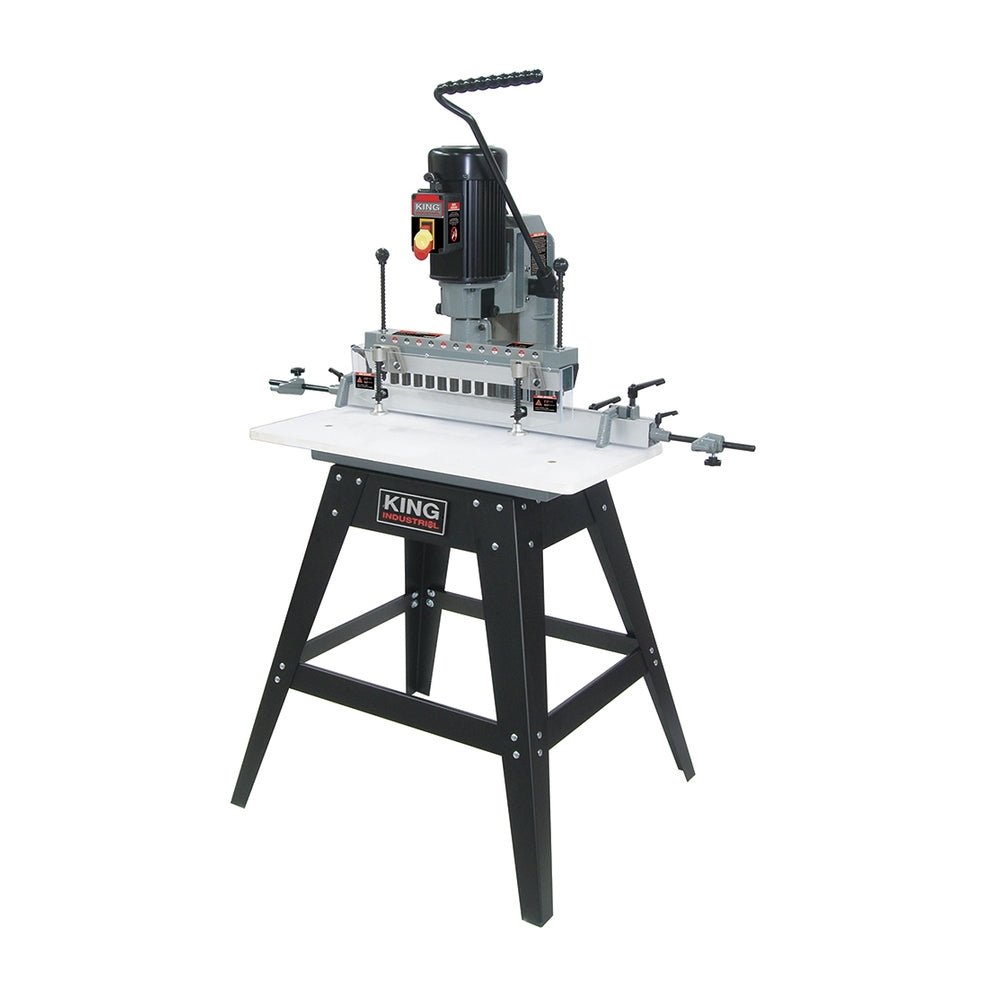

Description
- Powerful 1.5 HP, 110V motor
- Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications
- 13 spindles spaced 32mm (1-1/4") on centre, allowing drilling up to 13 evenly spaced holes
- Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
- Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
- Large 31-1/2" x 15-3/4" melamine table top
- Comes complete with open steel stand
- MODELKC-1300BM
- NUMBER OF SPINDLES13
- COLLET SIZE3/8" (10 mm)
- SPINDLE CENTRES32 mm (1-1/4")
- SPINDLE SPEED3,500 RPM
- TABLE SIZE31-1/2" x 15-3/4"
- MAXIMUM DEPTH OF STROKE2-1/2"
- MAXIMUM STOCK THICKNESS5-1/2"
- MOTOR1-1/2 HP, 12.6 Amp.
- VOLTAGE110V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT76" x 28-1/2" x 67" / 215 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT34-1/4" x 21-1/4" x 28-1/4" / 225 lbs
