Description

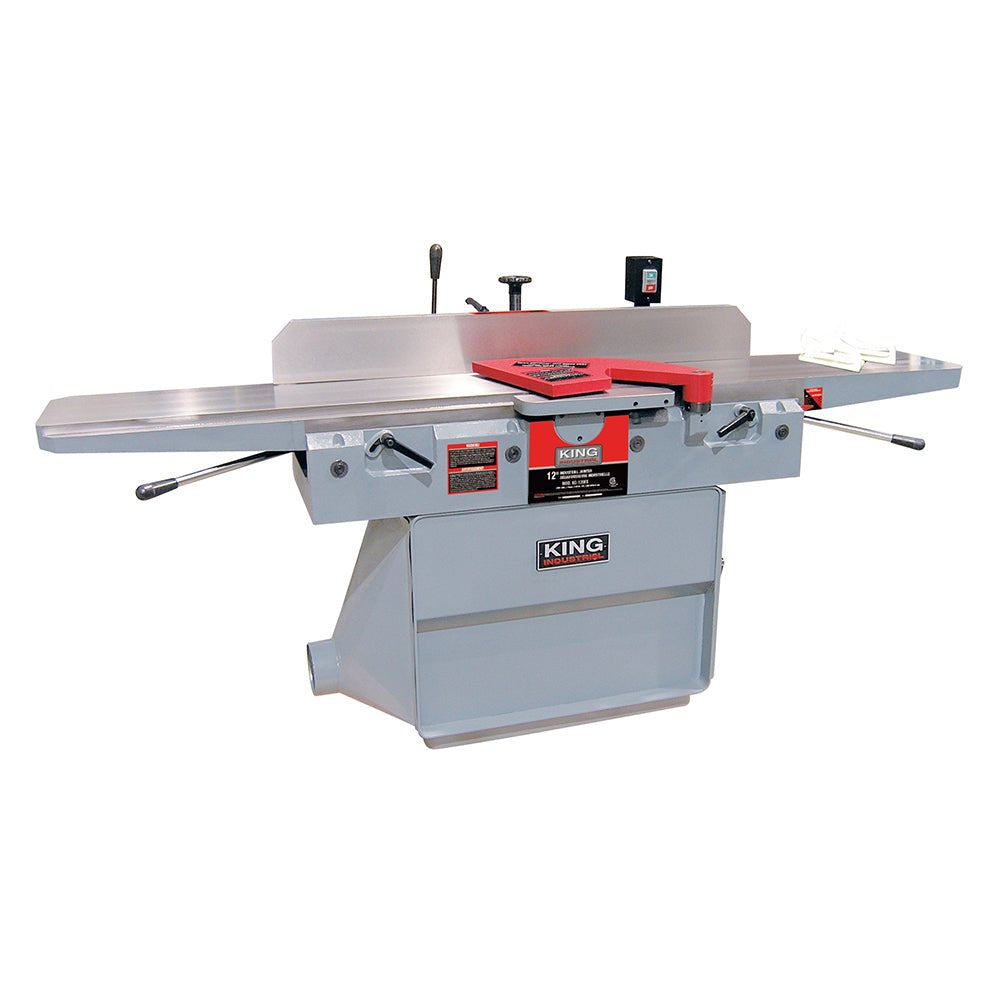

12" INDUSTRIAL JOINTER (220V)
- Powerful 3 HP motor
- Parallelogram table adjustment system
- 3 knife cutterhead allows rapid cutting while producing a superior finish
- Precision ground cast-iron tables
- Lever actuated infeed table, with lock handle, for quick and easy height adjustments
- Imperial/Metric depth-of-cut scale
- Easy access push-button on/off switch is conveniently positioned behind and above the table
- Connect a dust collection system to its 5” dust hood
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Sliding bar T-handle controls fence angle adjustment and locks with a single control
- Includes 2 safety push blocks
-
MODEL KC-120FX -
CAPACITY 12" -
CUTTERHEAD SPEED 5,000 RPM -
DIAMETER OF THE CUTTERHEAD 3-7/8" -
RABBETING CAPACITY 3/4" x 12" -
TABLE SIZE 84" x 13" -
FENCE SIZE 36" x 5" -
MOTOR 15 Amp. -
VOLTAGE 220V, 1 phase, 60Hz -
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 84" x 40" x 43" / 706 lbs -
PACKAGING DIMENSIONS (LXWXH) / WEIGHT 88-7/8 x 29-1/2" x 40-5/8" / 920 lbs
