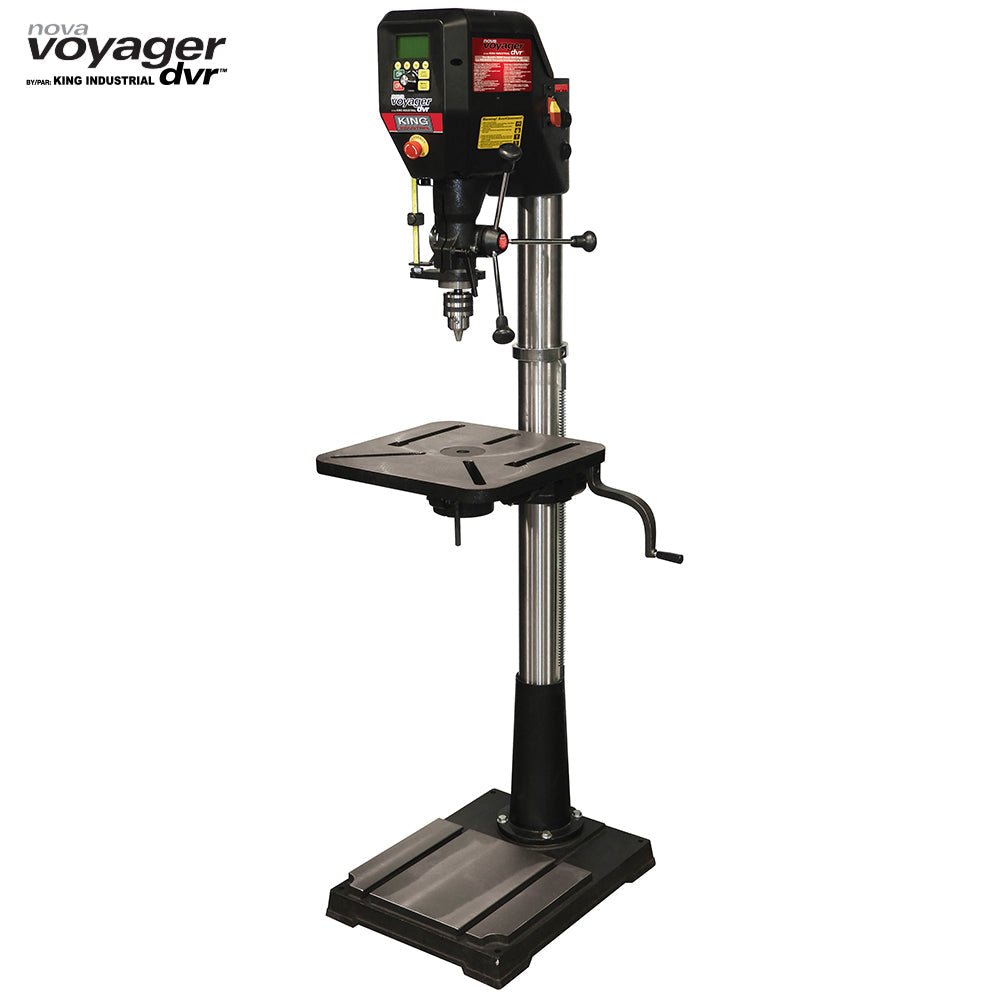

• The world’s first smart drill press combines common drill press features with state of the art technology
• Powerful direct drive 1.75 HP high torque motor with no pulleys or belts to cause vibration
• Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
• Constant torque under load, depth and vibration sensors and emergency stop
• Slow start pilot hole, tapping assist with chip breaking cycle and self start functions
• Intelligent speed selection and dial knob for precise speed adjustments
• Electronic braking and forward/reverse
• Comes with 5/8" drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys

Note: The firmware version of the HMI can be upgraded via USB cable accessory and a PC with internet access. Please click HERE.

• MODEL58006
• CAPACITY5/8"
• CHUCK SIZE5/8"
• SWING18"
• MAX. DISTANCE CHUCK TO TABLE23-1/8"
• MAX. DISTANCE CHUCK TO BASE40-7/8"
• STROKE6"
• TABLE SIZE16-1/2" x 16-1/2"
• SPINDLE TAPERMT #2
• QUILL DIAMETER75 mm
• VARIABLE SPEED RANGE (OPTIONAL SETTING)50 - 3,000 RPM (3,000 - 5,500)
• MOTOR1.75 HP, 15 Amp.
• VOLTAGE120V, 60 Hz, 1 phase
• ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT17-5/8" x 22-3/4" x 70-5/8" / 284 lbs
• PACKAGE DIMENSIONS(LXWXH) / WEIGHT62-3/4" x 27" x 17" / 325 lbs
• UPC7 72995 01544 3
