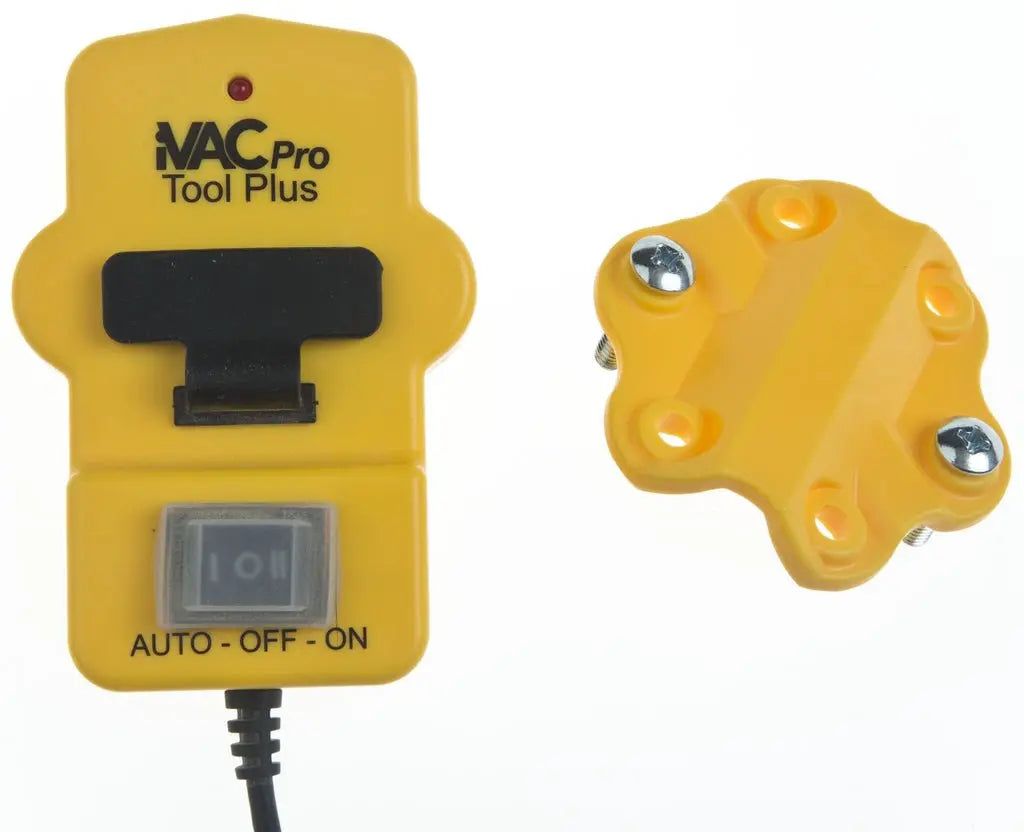

iVAC Pro Tool Plus Interface Specification
Description
Automatically detects when your power tool is turned on by sensing the magnetic field around the tool's power cord, and sends a wireless signal to the iVAC Pro Switch to turn on the dust collector. One required per power tool. Works with all types of tools, regardless of voltage or current requirements. Power adapter included.
OUR IVAC PRO TOOL PLUS DUST COLLECTOR AUTO SENSOR IS THE EASY WAY TO CONNECT TOOLS TO A DUST COLLECTION CONTROL SYSTEM.
Now you can connect power tools of all types to an iVAC Pro System for dust control without having to worry about electrical circuits or tool power requirements. It works for every machine regardless of its operating voltage, frequency, current, or number of phases.
The iVAC Pro Tool Plus is a dust collector auto sensor that automatically detects when your power tool is turned on by sensing the magnetic field around the power cord. When the power tool is turned on, the presence of that field is detected by the sensor and a wireless signal is sent to the iVAC Pro Switch to turn on the dust collector. Similarly, when the tool is turned off, the sensor detects the absence of the magnetic field and signals the iVAC Pro Switch to turn off the dust collector.
Because the iVAC Pro Tool Plus dust collector auto sensor is fixed to the tool’s power cord, there’s no need to accommodate different types of electrical circuits or power requirements, as is often the case with workshop power tools.
Installation is effortless. iVAC Pro Tool Plus dust collector auto sensor is attached to the electrical cord of the power tool using the supplied clamp, and the unit is powered by an AC adaptor, which is also included.
The range for radio communications between the ‘Tool Plus’ and the ‘iVAC Pro Switch’ is forty feet.
FEATURES
- High quality plastic housing
- USB power adaptor with 10 foot cord
- Three Modes of operation – Auto, Off and On
- Wireless operation
- Adjustable sensitivity
- Activity LED.
- Active current sensing level: adjustable from approximately 0.3Amps or greater.
- Range, forty feet, line of sight
- Ambient operating temperature range, 0 – 30C
- Power: UL FCC approved AC to 5VDC Adaptor.
- Regulatory Compliance: FCC ID: YCH- IVACTP, IC: 8940A-IVACTP
- 5Volt/1Amp AC to DC Adaptor included
- UL and FCC approved
iVAC Pro Tool Plus Auto Sensor specifications are subject to change without notice.
