Description

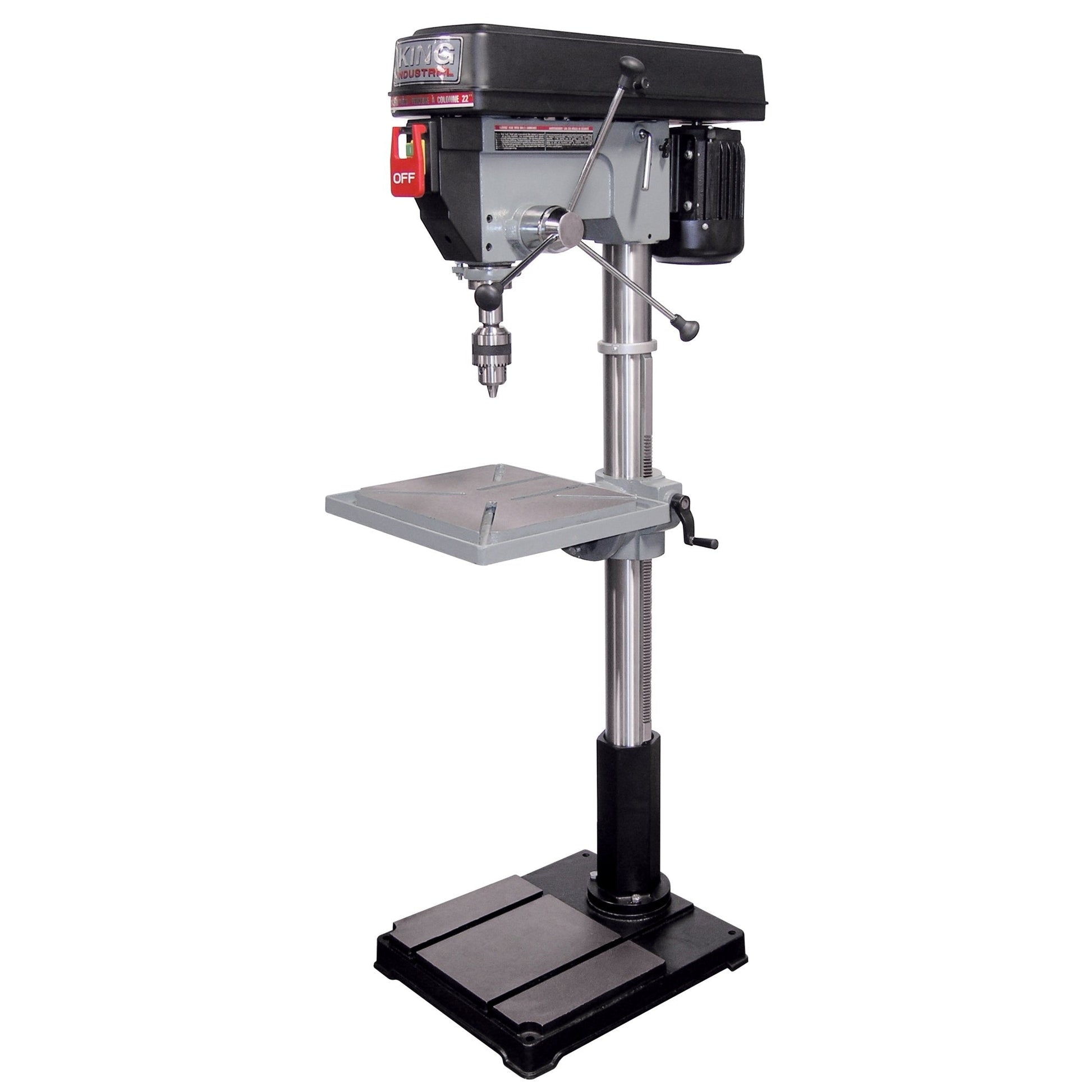

22" DRILL PRESS
- Powerful 1 HP motor
- Line interruption electro-mechanical switch needs a restart after a power failure
- Spindle is supported by high quality ball bearings
- Cast-iron pulleys reduce vibrations
- 45° tilting table for angular drilling
- Non-slip rubber feed handles
- 12 speeds
- Light socket incorporated into drill press head (standard light bulb not included)
- MODELKC-122FC
- CAPACITY1-1/4"
- CHUCK SIZE3/4"
- SWING22"
- STROKE4-3/4"
- MAX. DISTANCE FROM CHUCK TO TABLE21-3/4"
- MAX. DISTANCE FROM CHUCK TO BASE41-7/8"
- TABLE SIZE18-3/4" x 16-1/4"
- SIZE OF T-SLOT ON TABLE5/8"
- SPINDLE TAPERMT #4
- QUILL DIAMETER75 mm
- SPEEDS (RPM)12 (180 - 4,200)
- MOTOR12.5 Amp.@110V, 6.25 Amp.@220V
- VOLTAGE110V/220V, 1 phase, 60Hz
- PRE-WIRED AT110V
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT18-3/4" x 33" x 69" / 320 lbs
