Description
Grade
Contractor
Style
Portable - Vertical
CFM
5.5
Tank Size
29

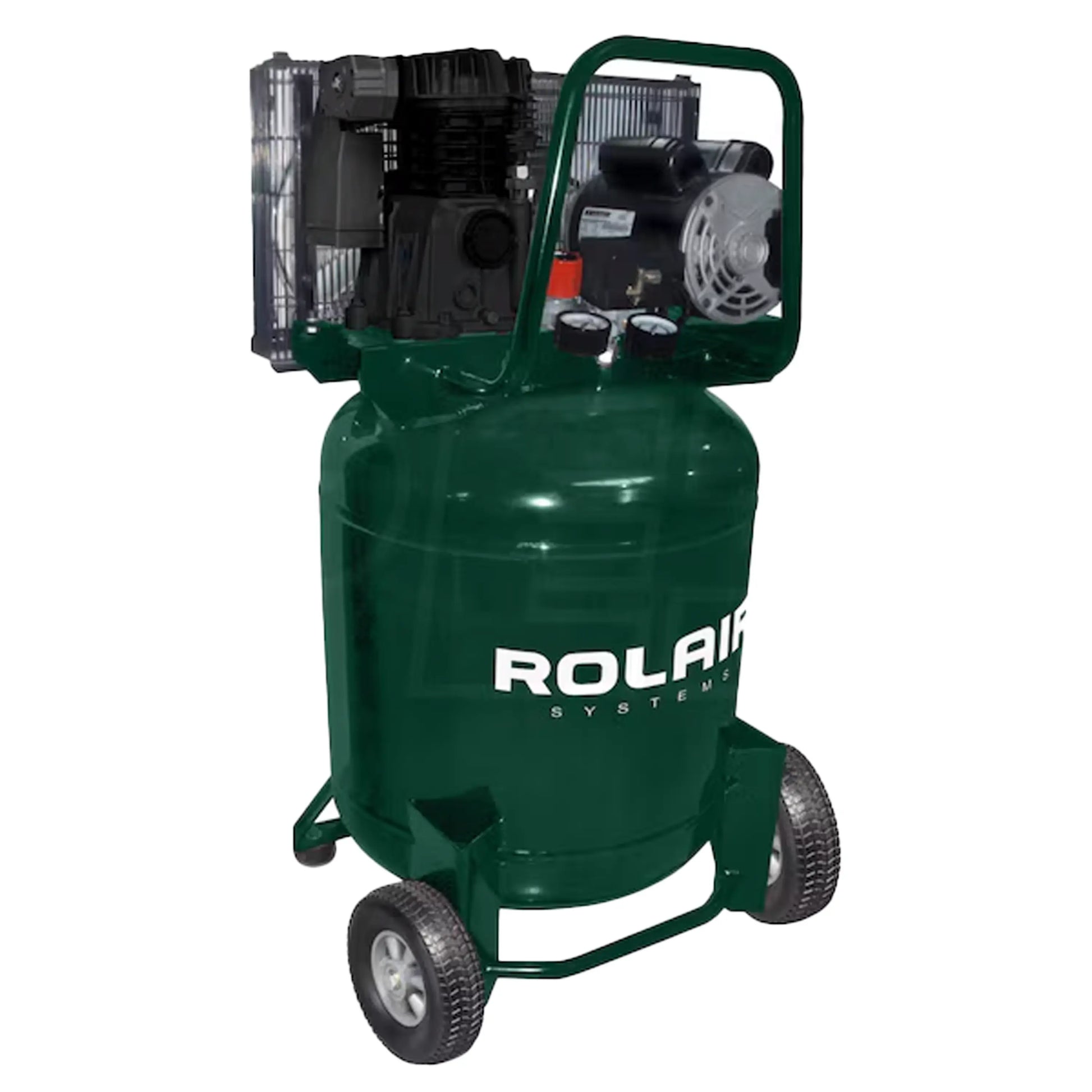

- High Performance Portable Air Compressor
- Delivers maximum air for home, shop or job site
- Great for inside trim, finish carpentry & framing applications
- Oil Lubricated 2 Cylinder Cast Iron Pump
- Replaceable intake filters for extra clean air
- Oversized crankcase for longer working hours
- Start/Stop pressure switch measures pressure inside tank
- Durable 2-HP Belt-Drive Motor
- Enclosed steel belt guard for added protection
- Draws only 15 amps; works on most household outlets
- Low amp draw makes it easier to start in cold weather conditions
- Automatic Thermal Protection
- Protects the motor from overheating and excessive use
- Safety relief valve controls and limits the pressure build-up in the system
- 29-Gallon Steel Vertical Tank
- Compact design for easy portability to job sites
- Easy access tank drain simplifies maintenance
- Cord wrap keeps cord nicely wrapped and organized
- Quick Connect Coupler w/ Regulator & Pressure Gauges
- Tank and tool pressure gauges can be checked at a glance
- Adjust the air line pressure accurately for peak tool performance
- Dolly-Style Handle w/ Wheel Kit & Anti-Vibration Feet
- Never-flat wheels take on stairs & rugged terrain with ease
Specifications
FC229MK103
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
15
Magnetic Starter
No
Engine
HP
2
Pump
CFM
5.5
CFM Rated @
90 PSI
CFM @ 40 PSI
6.6
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
150 PSI
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Free
Oil System
Splash Lubricated
Tank
Tank Size
29 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
158.7 Pounds
Consumer Warranty
1 Year
Product Length
24.4 Inches
Product Width
21.6 Inches
Product Height
41.7 Inches
Power Type
Electric
UPC
662865012637
