Description

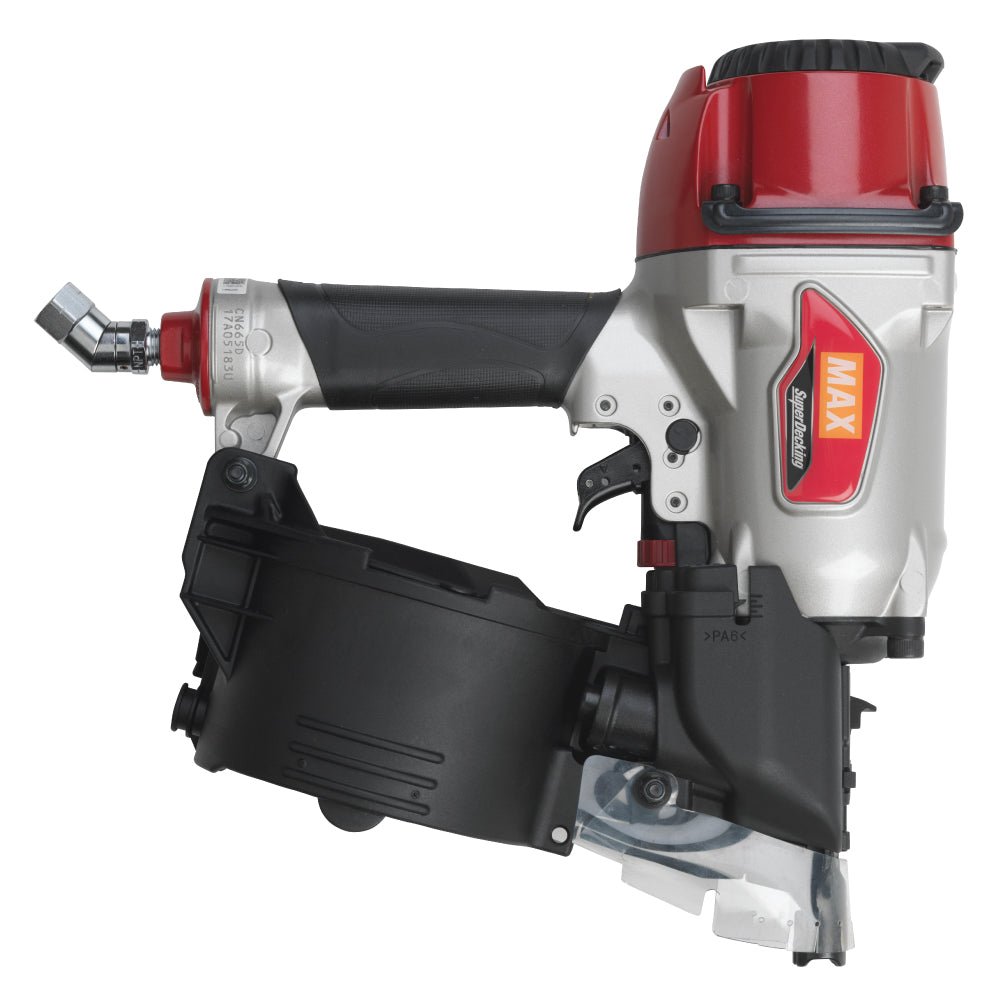

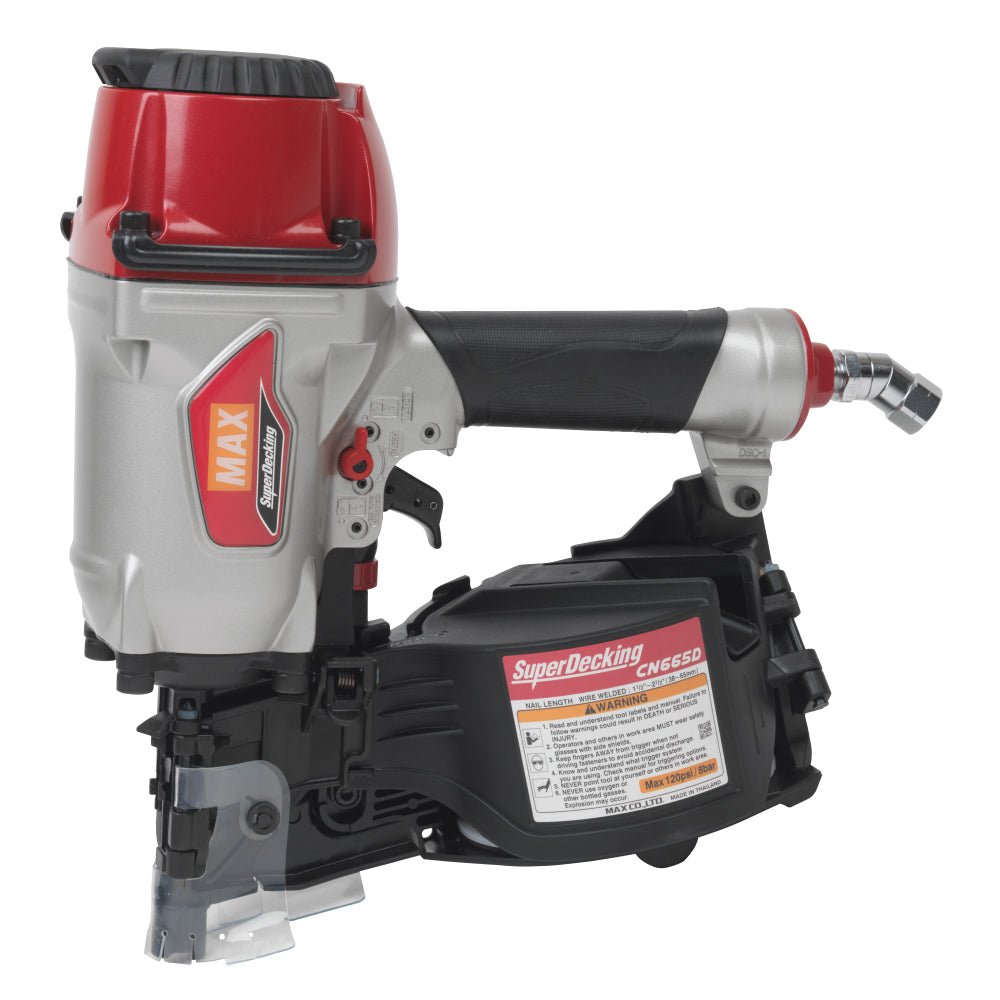

CN665D
Decking Coil Nailer up to 2-1/2"
With a large capacity magazine of 300 nails and a maximum fastener size of 2 ½” x .131”, the safety equipped CN665D SuperDecking® tool is ideal for sheathing, subflooring, roof decking, exterior deck, siding, fencing, exterior trim, furring, and strapping jobs. With an integrated rapid-fire trigger which enables high-speed fastening, carpenters can quickly finish their installations, reducing the probability of developing fatigue while you work.
- Decking
- Sheathing
- Subflooring
- Fencing
- Furring
- Strapping
FEATURES
- QUICKLY DRIVE NAILS TO GET YOUR JOB DONE FASTER
A rapid fire trigger allows for high-speed fastening. This trigger allows you to fire up to 15 nails per second. - SELF CLEANING TOOL
The patented, self-cleaning maintenance free end-cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected. - CONSISTENTLY AND ACCURATELY SHOOTS NAILS
The depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish. - DIVERT EXHAUST AIR AWAY FROM YOUR FACE
An easy twist air deflector cap rotates 360 degrees to divert exhaust air away from the user. - NO MORE TANGLED AIR HOSE
A tangle free swivel fitting prevents the hose from tangling no matter the direction the tool is being held.
SPECIFICATIONS
|
WEIGHT
|
6.2 lbs
|
|---|---|
|
DIMENSIONS
|
12 5/8"(H) x 5 1/8"(W) x 11"(L) |
|
MINIMUM OPERATION PRESSURE
|
70 PSI
|
|
MAXIMUM OPERATION PRESSURE
|
120 PSI
|
|
AIR INLET SIZE
|
1/4"
|
|
MAGAZINE CAPACITY
|
300
|
|
DEPTH CONTROL
|
Yes
|
|
JAM CLEARING
|
No
|
|
TRIGGER TYPE |
Rapid Fire Trigger |
|
AIR CONSUMPTION
(FT3/CYCLE) |
0.043
|
|
ACCESSORIES
|
Safety glasses
|
FASTENERS
|
COLLATION TYPE
|
Wire
|
|---|---|
|
NAIL GUN ANGLE
|
15 |
|
STRIP OR COIL
|
Coil
|
|
COMPATIBLE FASTENER TYPES
|
Wire welded Coil nails
|
|
MINIMUM FASTENER SIZE
|
1-1/2"
|
|
MAXIMUM FASTENER SIZE
|
2-1/2"
|
|
MINIMUM NAIL DIAMETER |
.092" |
|
MAXIMUM NAIL DIAMETER
|
.131"
|
MANUALS
Owner's Manual
DownloadDOCUMENTS
