Description

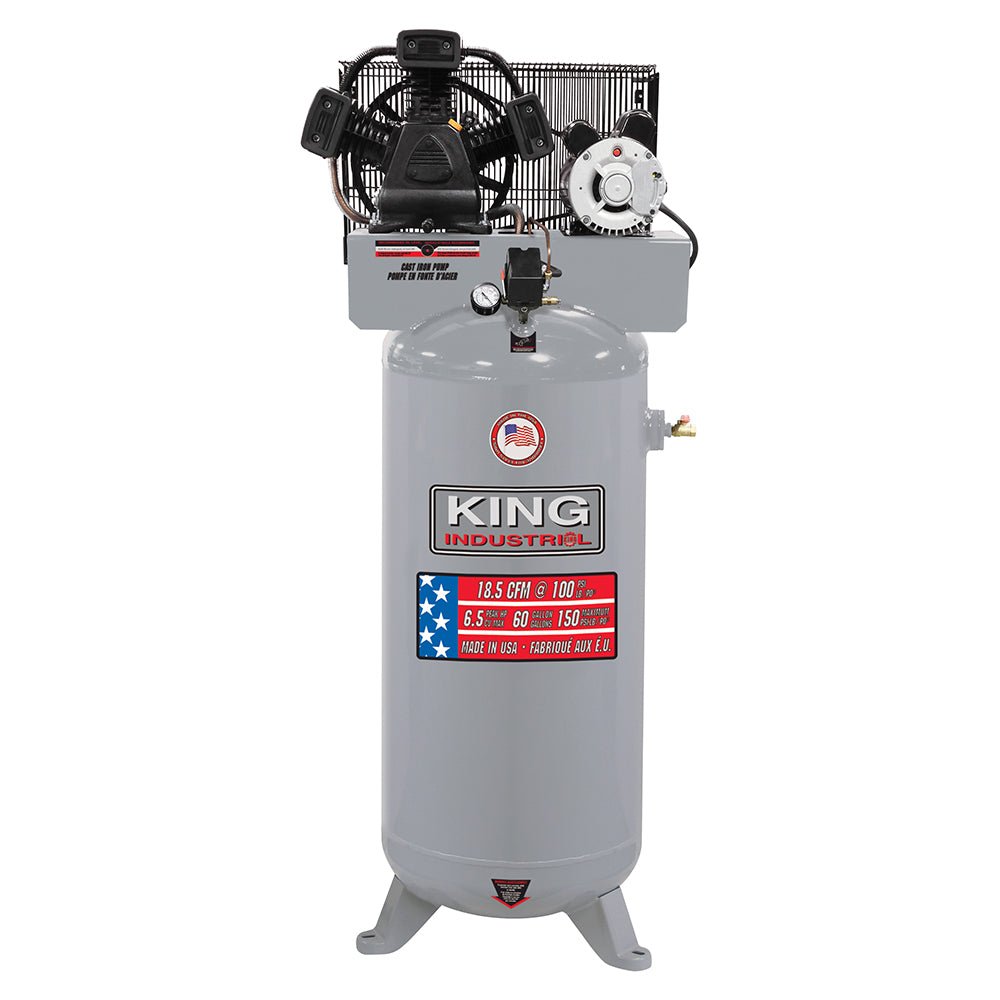

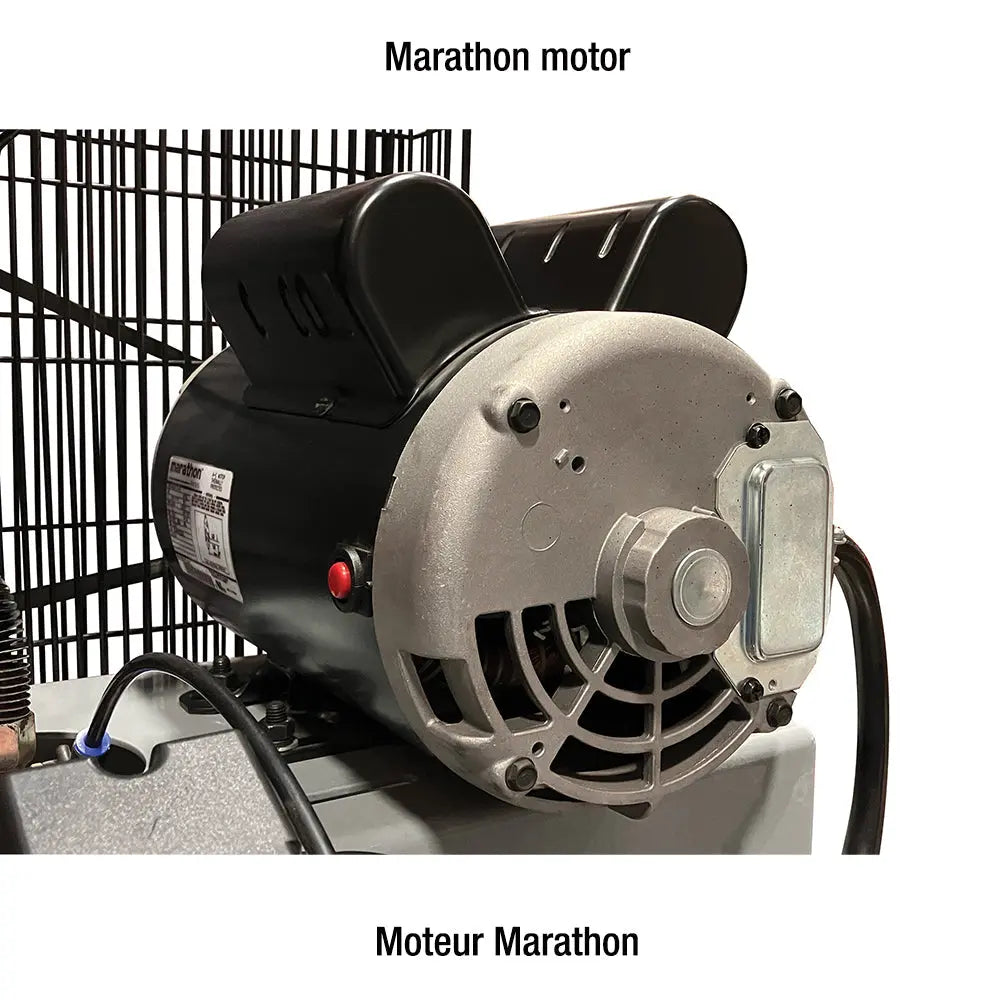

- Thermally protected US Motor® 6.5 peak HP motor with reset
- 2 cylinder cast iron single stage oil lubricated pump
- 150 PSI Max pressure for optimum tool performance
- 60 Gallon ASME registered tank provides longer run times
- ASME safety valve
- Belt drive with sturdy metal belt guard
- Large intake "Auto-drop" metal filters
- Heavy-duty 1/2" ball valve and easy to read tank pressure gauge
- Pump with "V" style design minimises vibrations, improves cooling and extends compressor life
- High efficiency reed valves for maximum performance
UPC
772995011001
- MODELKC-5160V2
- MOTOR (PEAK)6.5 HP
- FACTORY PRESSURE SETTING (ADJUSTABLE UP TO)95-125 PSI (Max. 135 PSI)
- MAXIMUM PRESSURE150 PSI
- AIR DELIVERY @ 40 PSI22.6 CFM
- AIR DELIVERY @ 100 PSI18.5 CFM
- TANK SIZE60 Gallon
- MOTOR AMPERAGE23 Amp.
- RPM3,450
- VOLTAGE208/240V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT25" x 22" x 68" / 260 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT31" x 24" x 73" / 270 lbs
- UPC7 72995 01100 1
