Milwaukee 2788-22HD - M18 FUEL™ 1-1/2" Lineman Magnetic Drill Kit
Milwaukee 2788-22HD - M18 FUEL™ 1-1/2" Lineman Magnetic Drill Kit
Usually 1–2 business days in Ontario, 3–8 elsewhere in Canada. Delivery times are estimates.
Answers come from this product's details, the manufacturer's site and other trusted sources. Email us instead
Attach & Save On These Items
€226,95
Save 5.0%
€128,95
Save 5.0%
€83,95
Save 15.0%
€96,95
Save 15.0%

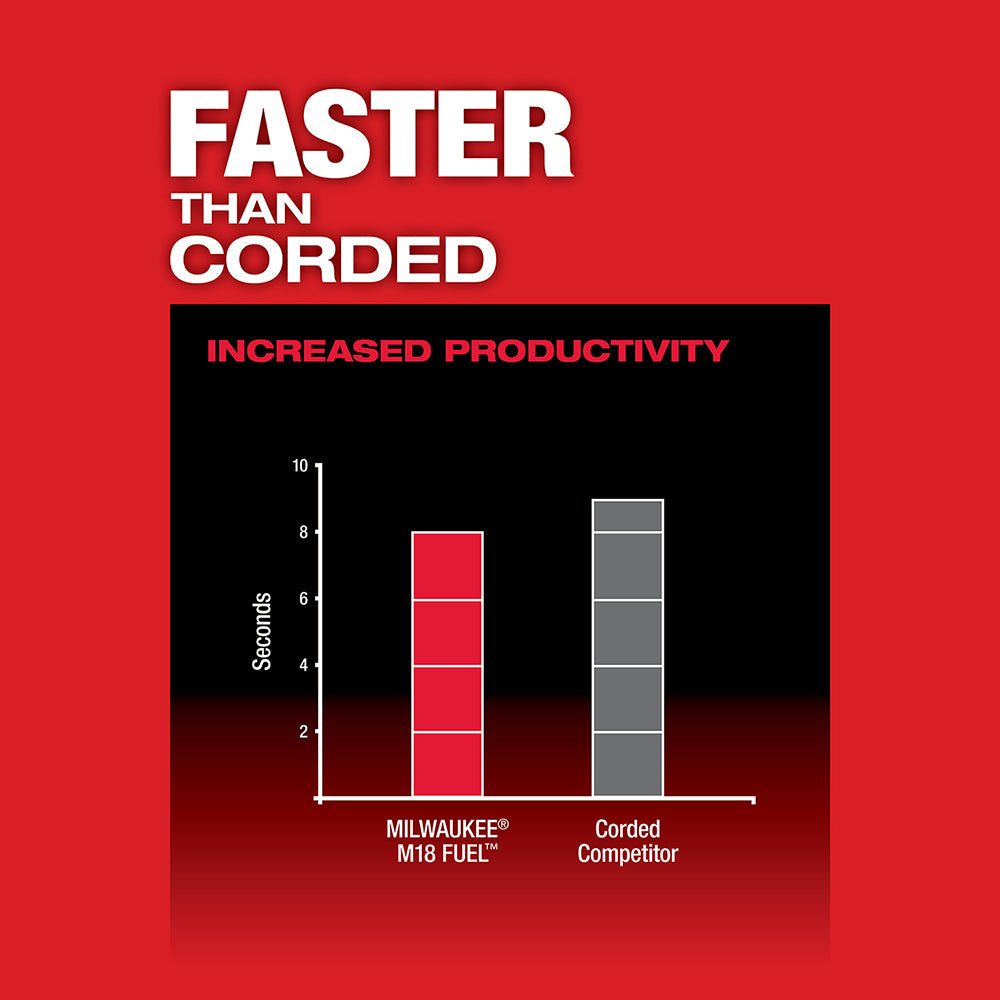

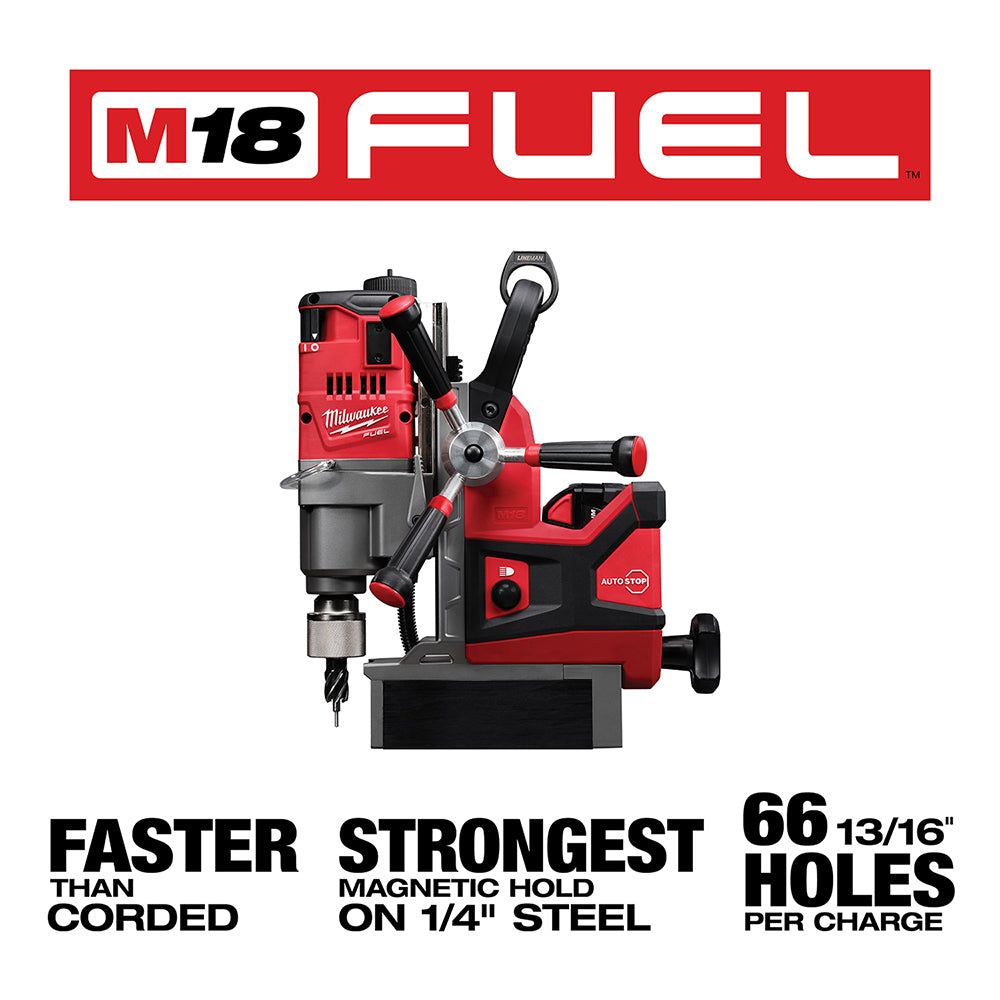

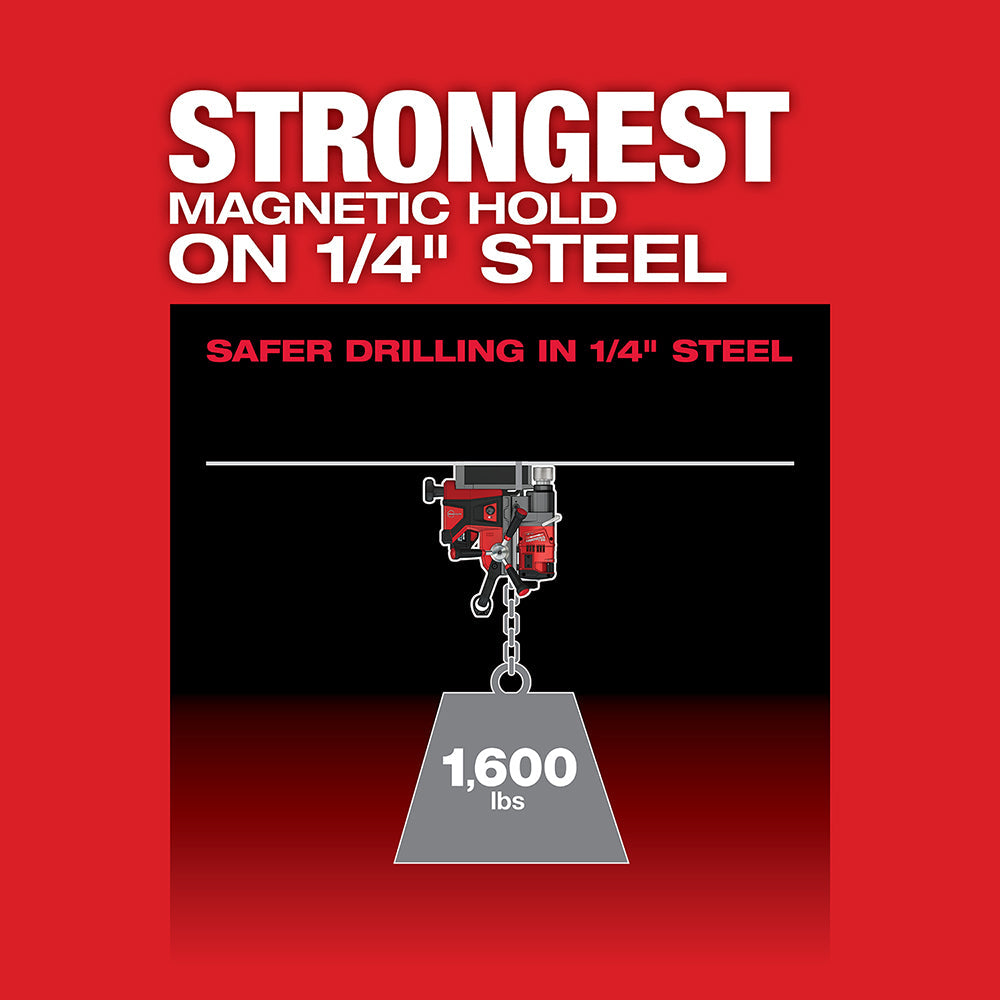

The M18 FUEL™ 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop™ lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM™ XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery is fully compatible with 200+ M18™ tools.

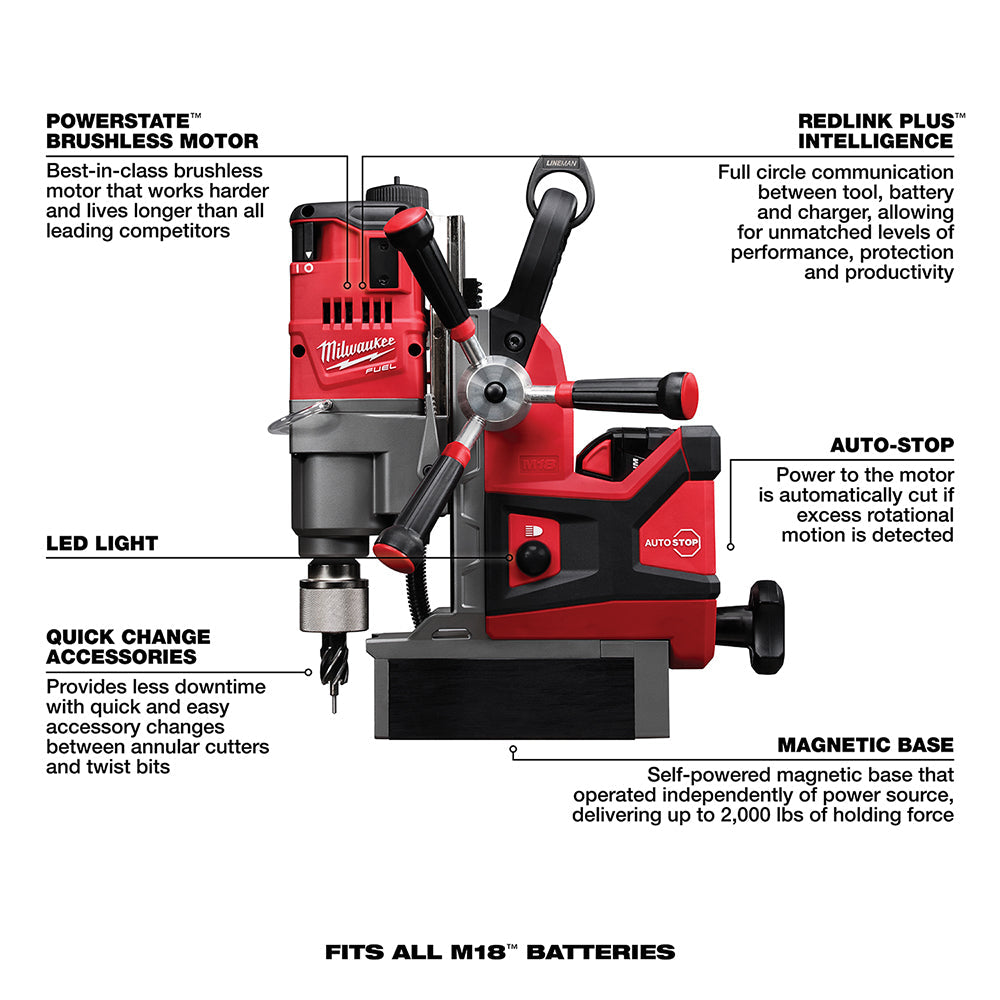

Key Features
- POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
- REDLINK PLUS™ Intelligence: Provides optimized performance and overload protection using total system communication between tool, battery and charger.
- M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery delivers over (66) 13/16" holes in 1/4" steel per charge
- Self- Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force.
- 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity.
- 3 Speed Gear Box: 400/690 RPM.
- Stroke Length: 5-3/4"
- Motor Head Adjustment: 5-1/8"
- Delivers over 66 13/16" holes in 1/4" steel per battery

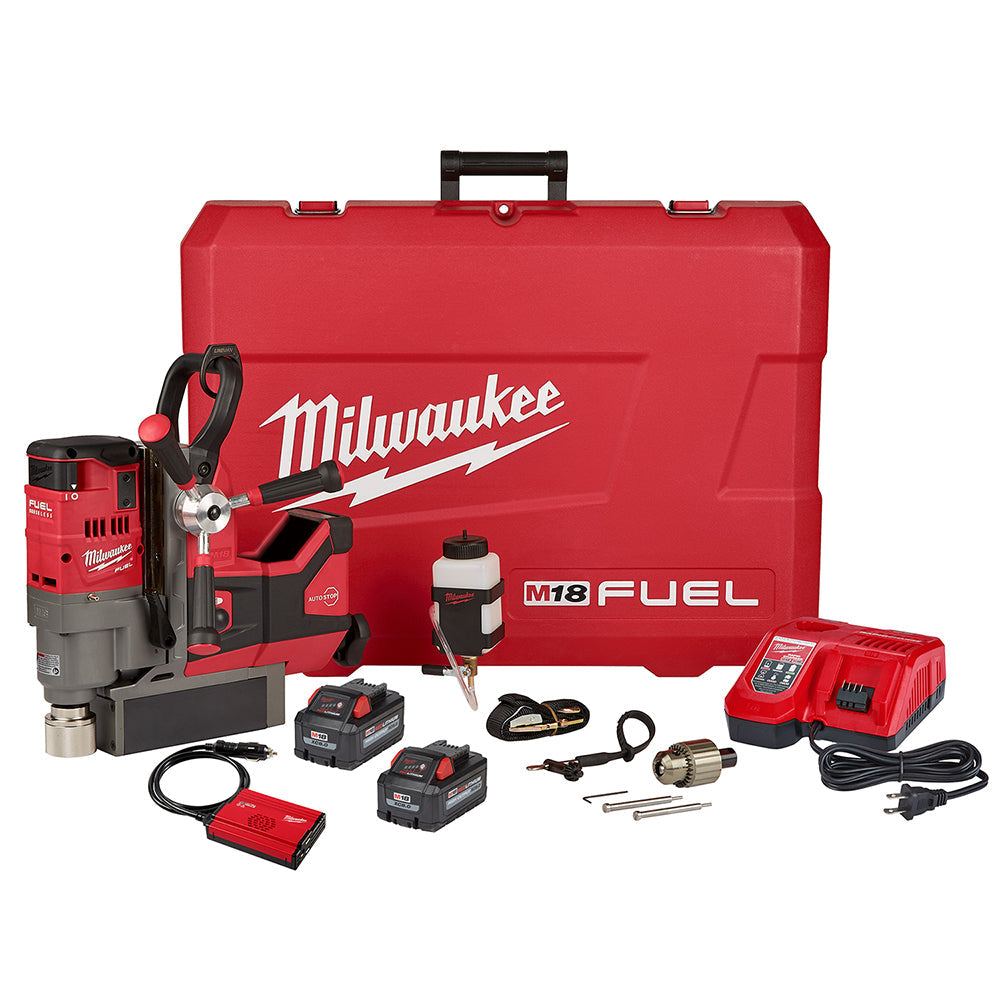

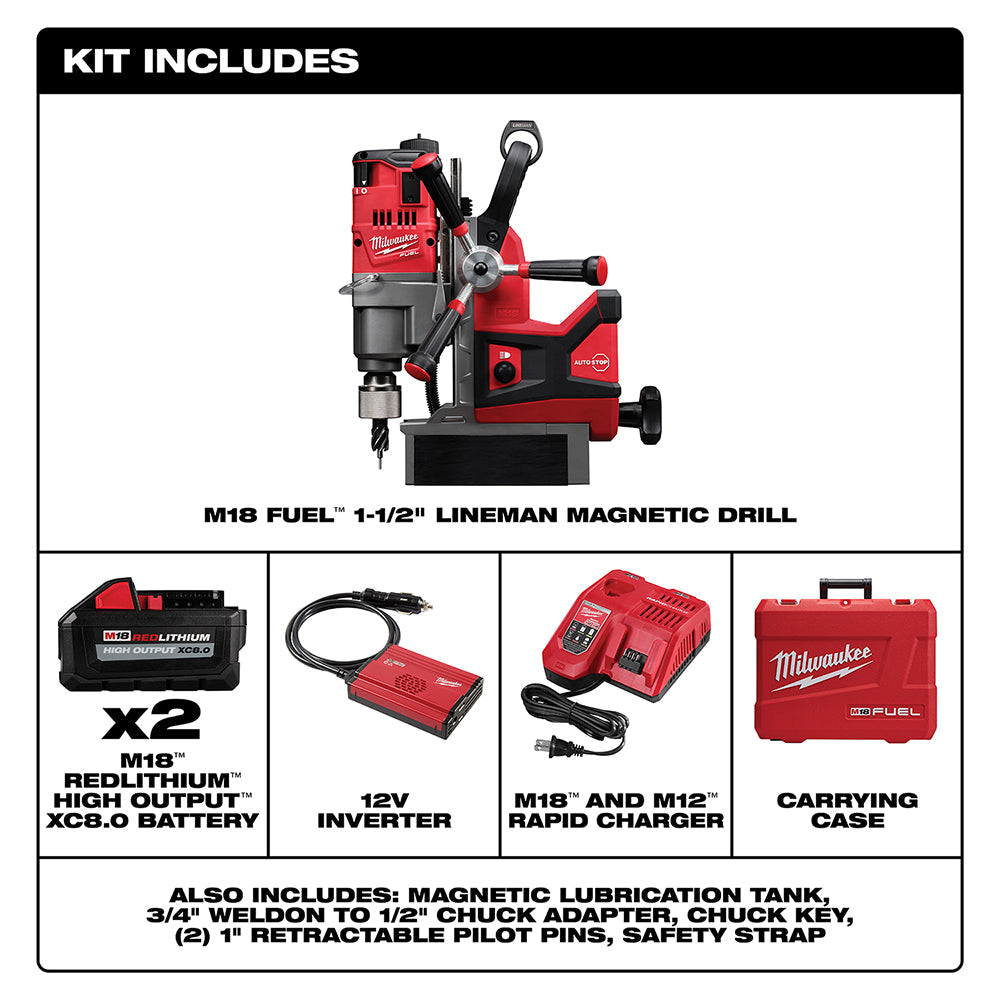

What's in the Box
(1) M18 1-1/2" Lineman Magnetic Drill Kit (2788-22); (2) M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery Packs (48-11-1880); (1)M18 & M12 Charger; (1) 150W DC Inverter; (1) 3/4" Weldon to 1/2" Chuck Adapter; (1) Chuck Key; (1) Magnetic Lubrication Tank; (1) Safety Strap; (2) 1" Retractable Pilot Pin; (1) Carrying Case
Warranty
5 Years (Tool), 3 Years (Battery)

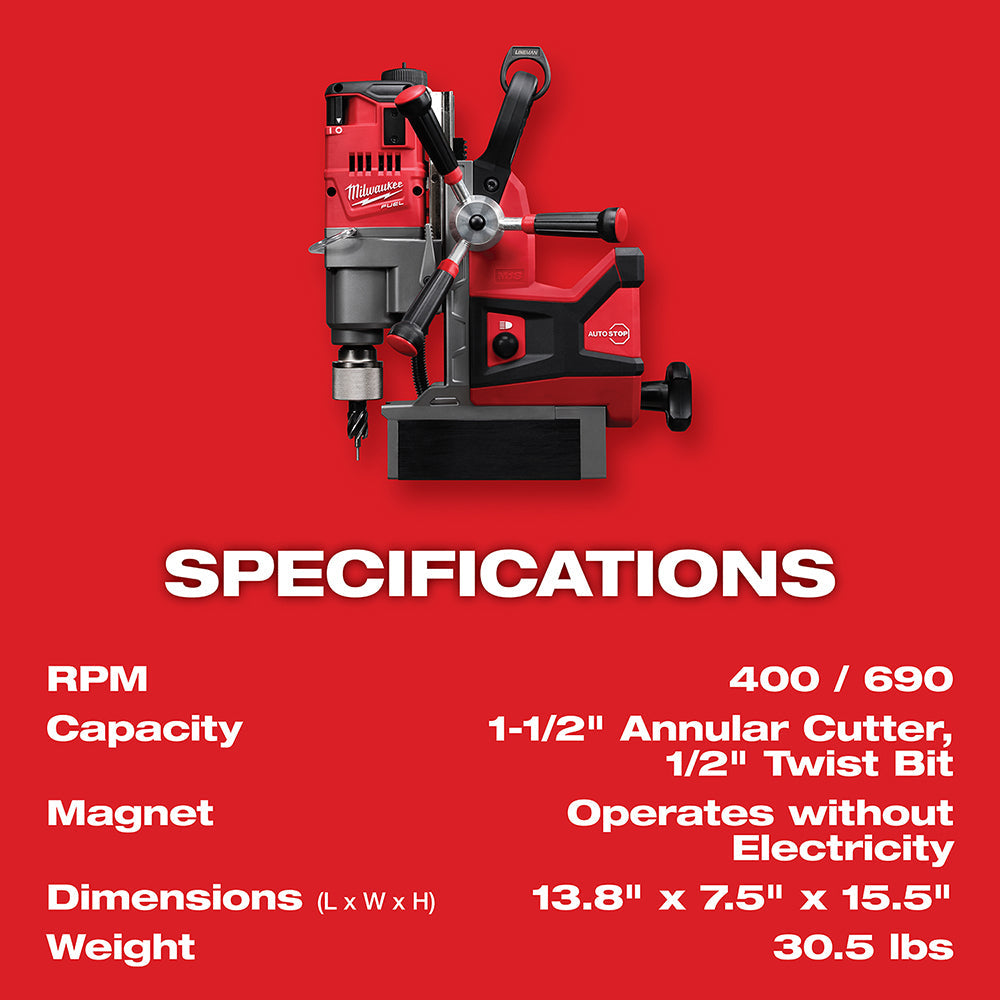

Specifications
| Battery Capacity : | 9Ah |
| Batteries Included / Bare Tool: | Battery Included |
| Condition: | New |
| Color Finish: | Black; Red |
| Battery Amp Hour (Ah) *: | 9 |
| Battery Voltage *: | 18 |
| UL Listed: | Yes |
| Battery System *: | M18™ |
| Brushless Motor *: | Yes |
| Chuck Type *: | All Metal |
| FUEL™ *: | Yes |
| Power Tool Branding *: | FUEL™ |
| Motor Type *: | POWERSTATE™ Brushless |
| Battery Pack Replacement: | 45KM67 |
| CSA Certified: | Yes |
| ETL Listed: | Yes |
| Magnet Type: | Permanent |
| Product Type *: | Magnetic Drill |
| Battery Pack Compatibility: | (2) 45KM67 |
| Drill Point Pressure (psi): | 750 |
| Speed Range High (rpm): | 700 |
| Speeds: | 2 |
| Badge Branding *: | FUEL |
| Material *: | Forged Steel |
| Includes Charger: | Yes |
| Magnetic Base: | Yes |
| Speed Range: | 400 / 690 rpm |
| Magnetic Holding Power (lbs): | 2000 |
| Steel Capacity (in): | 1.5 |
| Corded Cordless: | Cordless |
| Hole Depth (in): | 2 |
| Drill from Center to Base: | 1-1/2 in |
| Drill Travel (in): | 5.75 |
| Capacity Steel: | 1-1/2 in |
