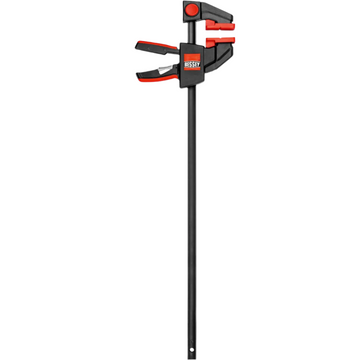

BESSEY EHKXL36 - Extra Large trigger clamp, 600 lb, 36" x 3-5/8"
Choose your option

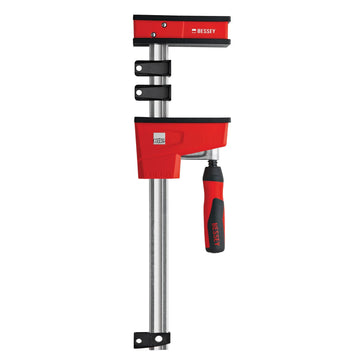

BESSEY KRE3531 - 31'' K BODY REVOlution (KRE) Parallel Clamp
Choose your option

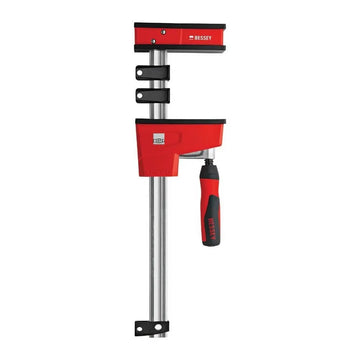

BESSEY KRE3540 - 40 in. x 3-3/4 in. K-Body REVO 2K Handle Parallel Bar Clamp
Choose your option

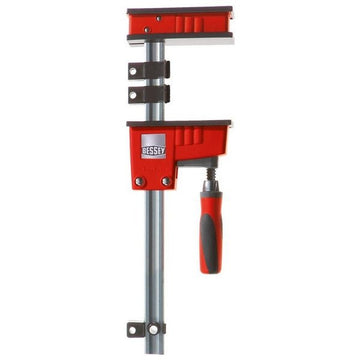

Bessey KR3.524 24-Inch K Body REVO Fixed Jaw Parallel Clamp
Choose your option
BESSEY XCRG4 - Clamp, hand clamp, ratcheting, plastic, 4 In. capacity, 3 In. throat
Choose your option

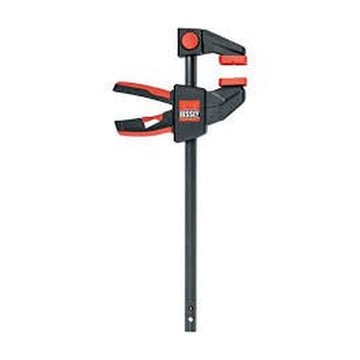

Bessey EHKXL24 - Extra Large trigger clamp, 600 lb, 24" x 3-5/8"
Choose your option

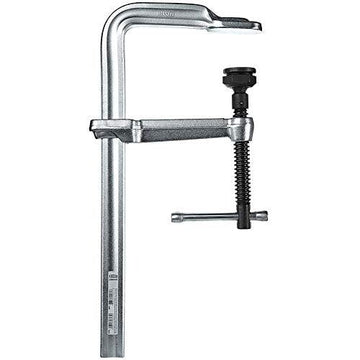

Bessey GSM30 - Clamp, Welding, F-style, Heavy Duty Pad, 12 In.
Choose your option
Choose your option

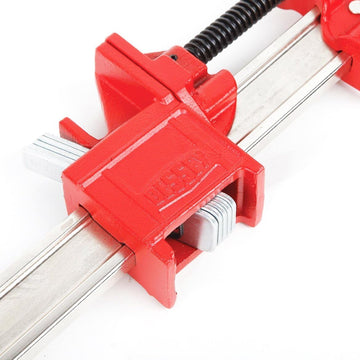

Bessey IBEAM48 Heavy Duty IBEAM Clamp, Red/Silver/Black, 48"
Choose your option

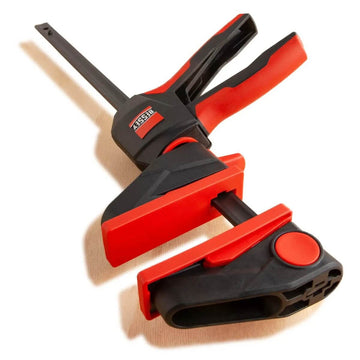

BESSEY EHKL360-18 - 360 Degrees 18″ Quick Action Trigger Clamp
Choose your option
Quick guide
Need help choosing?
Start with the job. Each card takes you to the BESSEY clamp type made for it.
-
Not sure which clamp?
Tell our team the job and the size of the work. We will point you to the right type.
Contact our team -
Authorized Canadian dealer
BESSEY clamps shipped from Tillsonburg, Ontario. Free shipping over $149 before tax, 50 lb or less.
Shipping policy - Glue up panels, doors or cabinet boxes Parallel clamps K Body REVO clamps at 90° to the rail with large pads, rated at a nominal 1,700 lbs.
- Hold work with one hand while you position it Trigger clamps One-handed EHK clamps; BESSEY rates the series from 85 to 600 lbs depending on model.
- Edge-glue boards with pipe Pipe clamps PC-series clamps fit ¾" or ½" black pipe and are described by BESSEY as ideal for edge gluing.
- Hold parts to a bench, jig or table Toggle clamps Auto-adjust toggle clamps adapt to workpiece height; clamping force is adjustable (25–550 lbs by model).

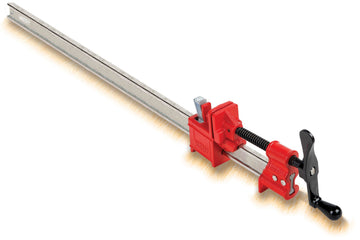

- Clamp a long span without flex I-beam bar clamps The I-beam rail resists bending and twisting over distance; rated 7,000 lbs, 24" to 96".
- Heavy-duty bar clamping in the shop All-steel bar clamps 2400S: 5½" throat, 2,800 lbs. 4800S: 7" throat, 4,880 lbs (BESSEY ratings).
Technical guide
Compare BESSEY clamp types
Sizes, throat depth and rated clamping force for the main BESSEY series, side by side.
| Type / series | Capacity range | Throat depth | Clamping force | Suited to |
|---|---|---|---|---|
| K Body REVO parallel clamps KRE |
12"–98" rails | 3¾" | 1,700 lbs nominal (2,200 lb working load limit) | Cabinetry, heavy-duty laminations, general clamping |
| All-steel bar clamps, regular duty 2400S |
8"–60" | 5½" | 2,800 lbs | Regular-duty industrial bar clamping |
| All-steel bar clamps, heavy duty 4800S |
12"–60" | 7" | 4,880 lbs | Heavy-duty applications |
| I-beam bar clamps IBEAM |
24"–96" | 2" (jaw width 1¾") | 7,000 lbs | Long spans where strength and straightness matter |

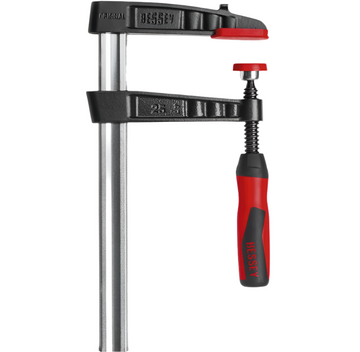

| Cast woodworking bar clamps TGJ / TG / TGK |
6"–79" | 2½"–7" | 600–1,540 lbs (by model) | Workshop woodworking |

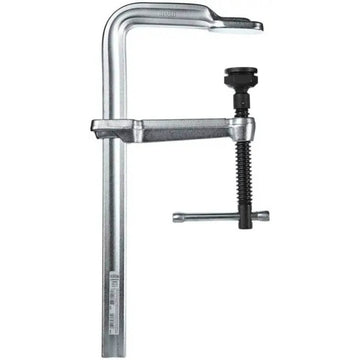

| F-style all-steel clamps classiX GS / GSM |
4"–24" | 3⅛"–5½" | 550–1,200 lbs (GS) · 2,660 lbs (GSM) | Light duty (GS) to regular duty (GSM) |

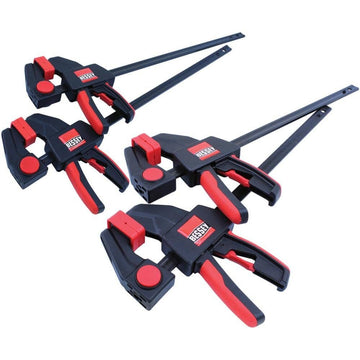

| Trigger (one-handed) clamps EHK |
4½"–36" | 1⅝"–3⅝" | 85–600 lbs (by model); EHK360 up to 300 lbs | One-handed clamping and spreading |
| Lever clamps LC · KliKlamp KLI |
4"–31" (LC) · 4"–16" (KLI) | 2⅜"–5½" (LC) · 3" (KLI) | 400–1,200 lbs (LC) · 260 lbs (KLI) | Rapid-action ratchet clamping |
| Toggle clamps, auto-adjust STC |
⅜"–2⅜" opening; auto-adjusts ⁵⁄₁₆"–1⅜" | n/a | 25–250 or 25–550 lbs adjustable; 450–700 lbs holding capacity | Workholding on benches, jigs and tables |

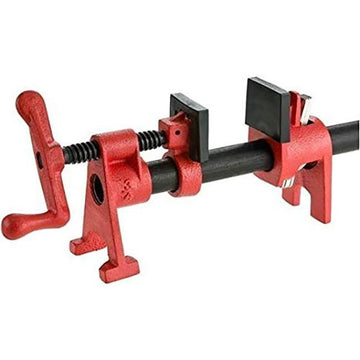

| Pipe clamps PC / BPC-H |
Set by your pipe length (¾" or ½" black pipe) | 2⅛"–2⅜" | Not published by BESSEY | Edge gluing multiple pieces |

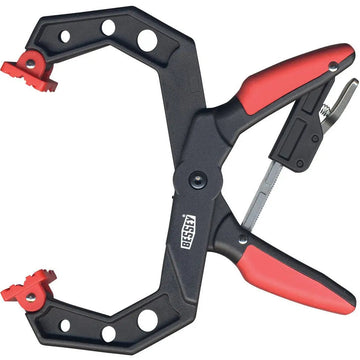

| Spring & ratcheting clamps XM · XC · XCRG |
1"–4" | 1¼"–5" | Not published by BESSEY | Light-duty holding; XM has vinyl tips to prevent marring |
We list BESSEY’s published ratings from its North America catalog. Ratings are the manufacturer’s figures, not a guarantee for every application; not every model in a series is stocked. C-clamps, snips and vises are not in this table, so check the ratings on each product page. BESSEY 2025 catalog (PDF) (opens in a new tab)
Parts and accessories: what fits what
| Part | Fits | Notes |
|---|---|---|

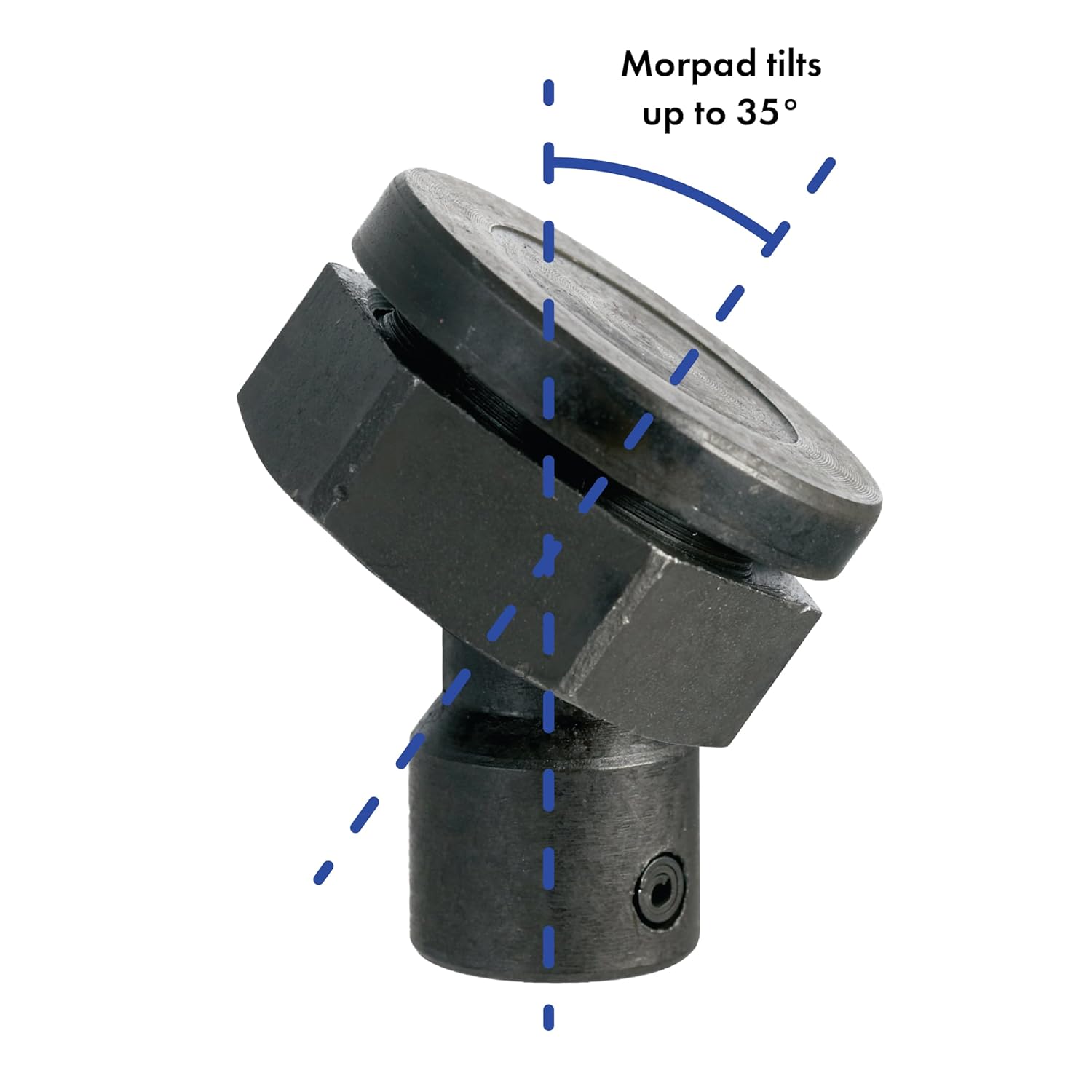

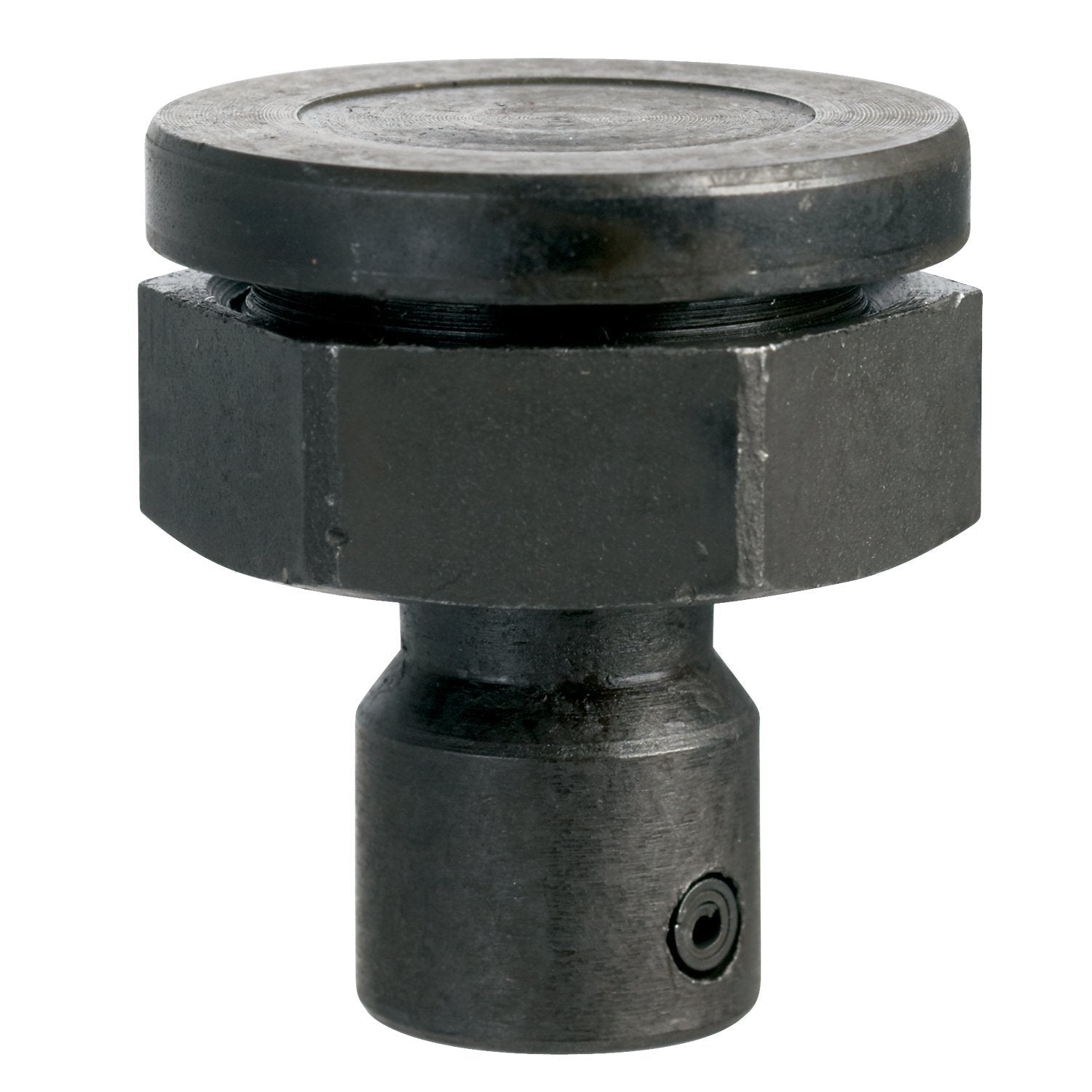

| 3100736 MorPad heavy-duty pad | 12/18/24/4800, SGL, SQ, STB, GSL and GSM, SLV, GSV series | Match your clamp’s series before ordering. |
| 3101407 sliding arm assembly with MorPad | 2400S series (5½" throat) | Complete arm assembly. |
| 3006786 large cushion grip handle | RSC-12/18/24, 1200, 1800-S, 2400S, SQ, SGL, SG30VAD, DT2400 | |

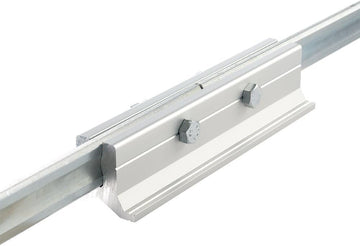

| KBX20 K Body extender | All K Body REVO versions | Joins two clamps to increase clamping width. |
| KR-AS K Body tilting adapter | K Body REVO parallel clamps | Soft-faced tilting pads, −15° to +15°, for glue-ups that are not 90°. |
| KT5-1CP single spindle edge clamp | Bar clamps with rails up to ½" thick | Glue up and apply edge banding in one step. |
| KP framing blocks | K Body REVO parallel clamps | Four 90° blocks; clamping pressure is set separately per corner. |
Fitment is as published by BESSEY. BESSEY 2025 catalog (PDF) (opens in a new tab)
Why BESSEY
Engineering advantages
What the manufacturer publishes about how these clamps are made.
-
Steel from its own plant
BESSEY procures its rails and spindles from BESSEY Präzisionsstahl’s own in-house drawing plant, so it knows the steel that goes into these key parts.
BESSEY company page (opens in a new tab) -
Patented rail, drop-forged arm
Premium all-steel clamps use a patented rail profile (BESSEY states 20% more clamping force per spindle turn on the 660, 1200, 1800 and 2400 series) and a U-shaped drop-forged sliding arm.
BESSEY 2025 catalog (opens in a new tab) -
Hardened Acme spindles
Heat-treated, high-carbon Acme-threaded spindles are built for high load capacity, durability and spatter resistance.
BESSEY 2025 catalog (opens in a new tab) -
K Body REVO: tool-free parallel clamping
90° no-slip clamping, a nominal 1,700 lbs and a 2,200 lb working load limit, large replaceable 2" × 5¾" pads, and set-up for clamping or spreading without extra tools.
BESSEY K Body REVO page (opens in a new tab) -
Auto-adjust toggle clamps
Toggle clamps that adjust to workpiece height while maintaining clamping force; clamping force is adjustable and holding capacity is rated at 450 or 700 lbs by model.
BESSEY toggle clamp sheet (opens in a new tab) -
EHK360 rotating handle
The trigger clamp handle rotates 360° around the rail, so you can set the best handle position for clamping or spreading, and clamp several side by side in tight spaces.
BESSEY 2025 catalog (opens in a new tab)
Explore
Browse by type and by job
By clamp type
By application
- Woodworking and cabinetryWoodworking clamps collection, BESSEY only
- Welding and metalworkWelding clamps and accessories, BESSEY only

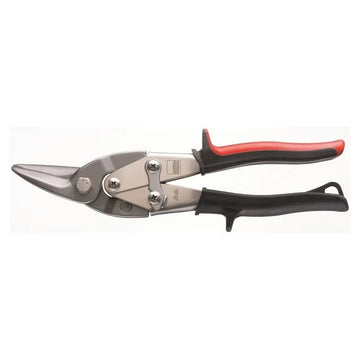

- Cutting and snipsHandheld metal shears and nibblers, BESSEY only
- Squares and layoutSquares collection, BESSEY only
- Drywall and ceiling supportsTelescopic supports and accessories

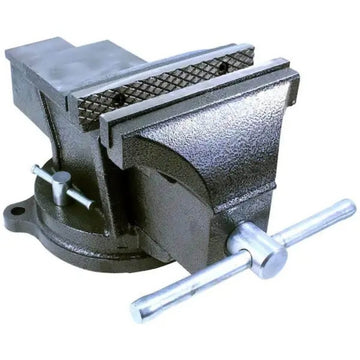

- Bench and drill-press visesBESSEY vises
Warranty
BESSEY warranty and service
This is BESSEY Tools North America’s warranty, summarized from besseytools.com. It is separate from our own return policy.
-
Clamping products: limited lifetime
BESSEY brand clamping products are warranted to be free from defects in material and workmanship for the life of the tool. The warranty does not cover abuse, misuse, improper handling, negligence, alteration, or normal wear and tear.
-
Other tools: 1 year
BESSEY lists snips, knives, C-clamps, some specialty clamps, magnets, bearing heaters and pyrometers at 1 year. Not sure which category a model falls into? Ask our team before you order.
-
How a claim works
- Contact our team first with your order number or invoice (contact page or 519-688-1714). We handle warranty claims and will tell you the next step for BESSEY.
- BESSEY’s own process is an online warranty claim form with at least 2 photos of the problem (5 MB total).
- BESSEY decides eligibility and may repair, replace or refund. An evaluation may require shipping the product to BESSEY at your expense.
The BESSEY warranty gives you specific legal rights; you may also have other rights under federal and provincial law. Need an invoice or order number for a claim? Contact our team.
Trade questions
Trade FAQ
Are you an authorized BESSEY dealer?
Yes. We are an authorized Canadian BESSEY dealer, and we ship from our warehouse in Tillsonburg, Ontario.
When will my in-stock BESSEY order ship?
Orders for in-stock items placed Monday to Friday before 1 p.m. ET are dispatched the same day from our Tillsonburg warehouse. Same-day dispatch applies to in-stock items only.
Is shipping free?
Yes, on orders over $149 before tax that weigh 50 lb or less. Large or heavy items (over 50 lb) ship the most economical way available, and orders to NWT, Yukon and Nunavut are not eligible for free shipping. Read our shipping policy, or ask our team before you order a large item.
What do capacity and throat depth mean?
Capacity is how wide the clamp opens, so it sets the widest workpiece it can hold. Throat depth is how far the jaws reach in from the edge of the work. Choose capacity for the width you clamp and throat depth for how far in you need to reach. Cards in the grid show both where the product title or BESSEY’s catalog gives them.
How do I read BESSEY model numbers?

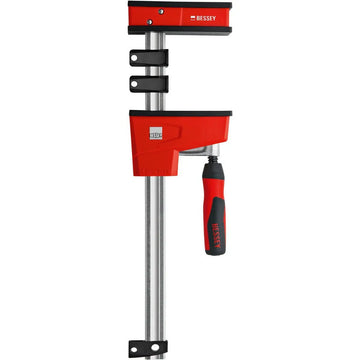

Many BESSEY numbers carry the size. KRE3550 is a K Body REVO that opens to 50 in., with a 3¾ in. throat on every KRE. On TG, TGJ and TGK bar clamps the first number is the throat and the last digits the length: TG5.512 has a 5½ in. throat and opens 12 in. (BESSEY 2025 catalog). GSCC3.512 is a clutch-style clamp with a 3½ in. throat and 12 in. capacity. EHK is the one-handed trigger series, and in 2400S and 4800S the number after the dash is the capacity in inches.
Which clamp suits panel and cabinet glue-ups?
Parallel clamps such as the BESSEY K Body REVO are designed for it: they clamp at 90° to the rail, have large pads, and are rated at a nominal 1,700 lbs. For long spans where straightness matters, compare the I-beam clamps in the table above.
Can I use a wrench or hex key for extra force?
Only where BESSEY says so. KRE handles accept a hex key up to 17 Nm, and 4800S spindles have a 19 mm hex head (70 Nm or less). BESSEY states that the hex head on its PC34-2 and PC12-2 pipe clamps is to facilitate clamping, not augment it, and that too much force may cause the fixture to fail. Always follow the instructions for your model.
Can I replace worn pads, handles or sliding arms?
For many all-steel clamps, yes. Check the compatibility table above, and contact our team if you cannot match a part to your clamp.
How do I make a warranty claim?
Contact our team first with your order number or invoice, using the contact page or 519-688-1714. See Warranty and service above and our warranty information. The warranty is BESSEY’s; it is separate from our return policy.
