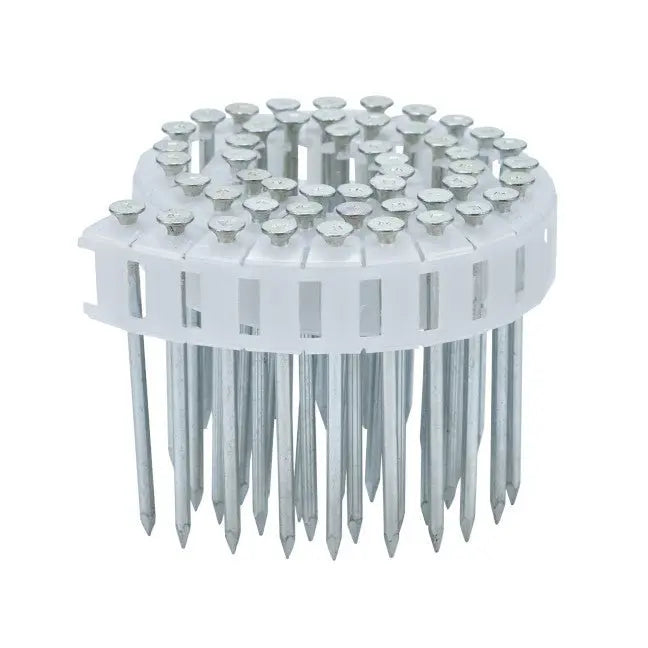

Max Tools CP-C .145″ Series Smooth Pins for Concrete

Max Tools CP-C .145″ Series Smooth Pins for Concrete

Max Tools CP-C .145″ Series Smooth Pins for Concrete:

• Series: CP-C8##W7-ICC
• Material: Carbon Steel
• Hardness: ≥ HRC55
• Electrogalvanized with zinc chromate: ≥ 2μm
• For use with:
  • • • Max Tools PowerLite® HN120 High Pressure 2-1/2″ Concrete / Steel Pinner

        Typical Applications:

        • Metal Track to Concrete
        • Hardwood Flooring to Concrete
        • Wooden Sill Plate to Concrete

          Approvals:

          • ICC-ES
          • ESR-2024
          • ESR-4320
          • ESR-4320 LABC/LARC Supplement

            CP-C .145″ Series Smooth Pin Sizes
            Product no.	Length	Diameter	Guide Type	Pins/Coil	Case Qty.
            CP-C819W7-ICC	3/4″	0.145″	Plastic	50	1,000 Pins
            CP-C825W7-ICC	1″	0.145″	Plastic	50	1,000 Pins
            CP-C832W7-ICC	1-1/4″	0.145″	Plastic	50	1,000 Pins
            CP-C838W7-ICC	1-1/2″	0.145″	Plastic	50	1,000 Pins
            CP-C851W7-ICC	2″	0.145″	Plastic	50	1,000 Pins
            CP-C864W7-ICC	2-1/2″	0.145″	Plastic	50	1,000 Pins

            Click here for more Specifications
