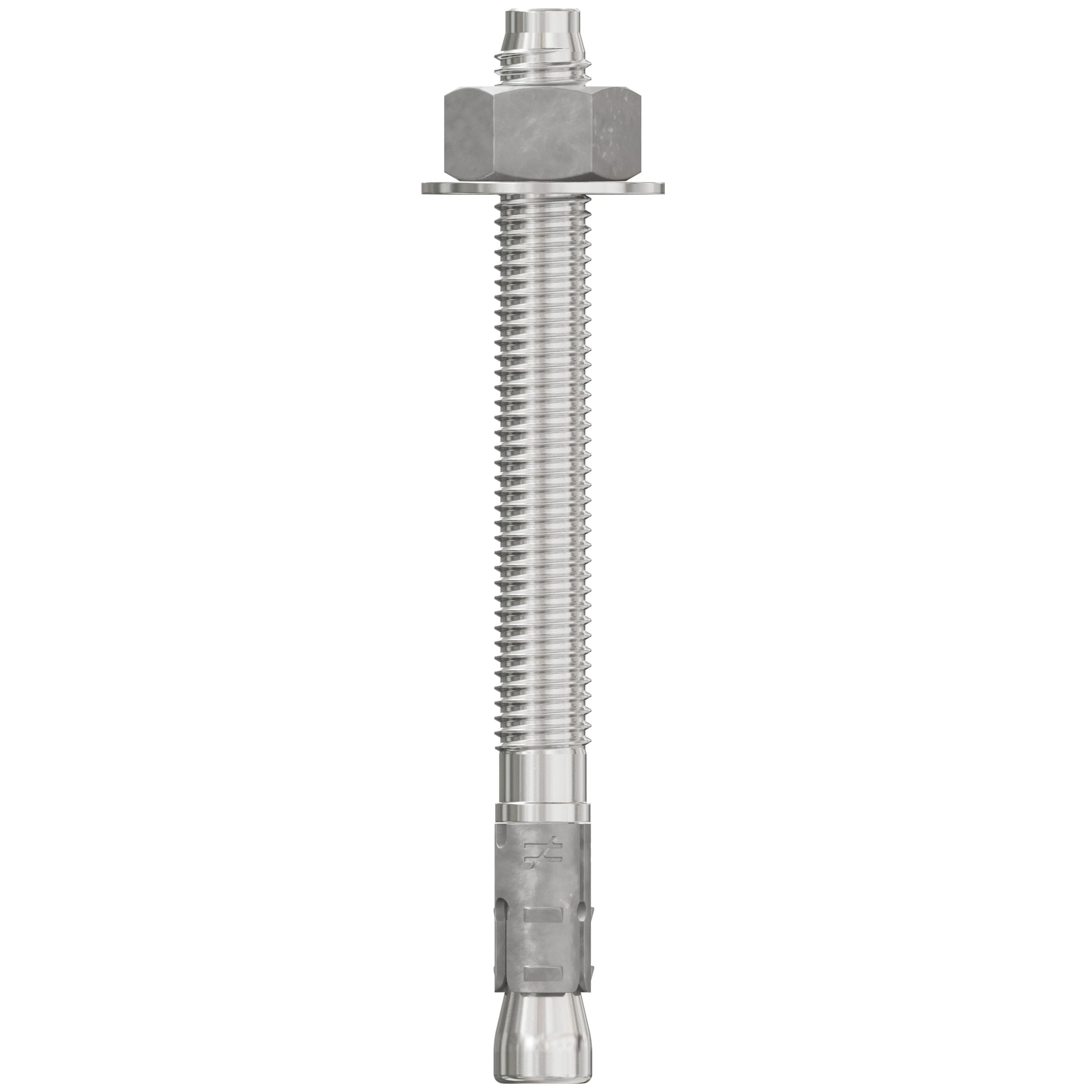

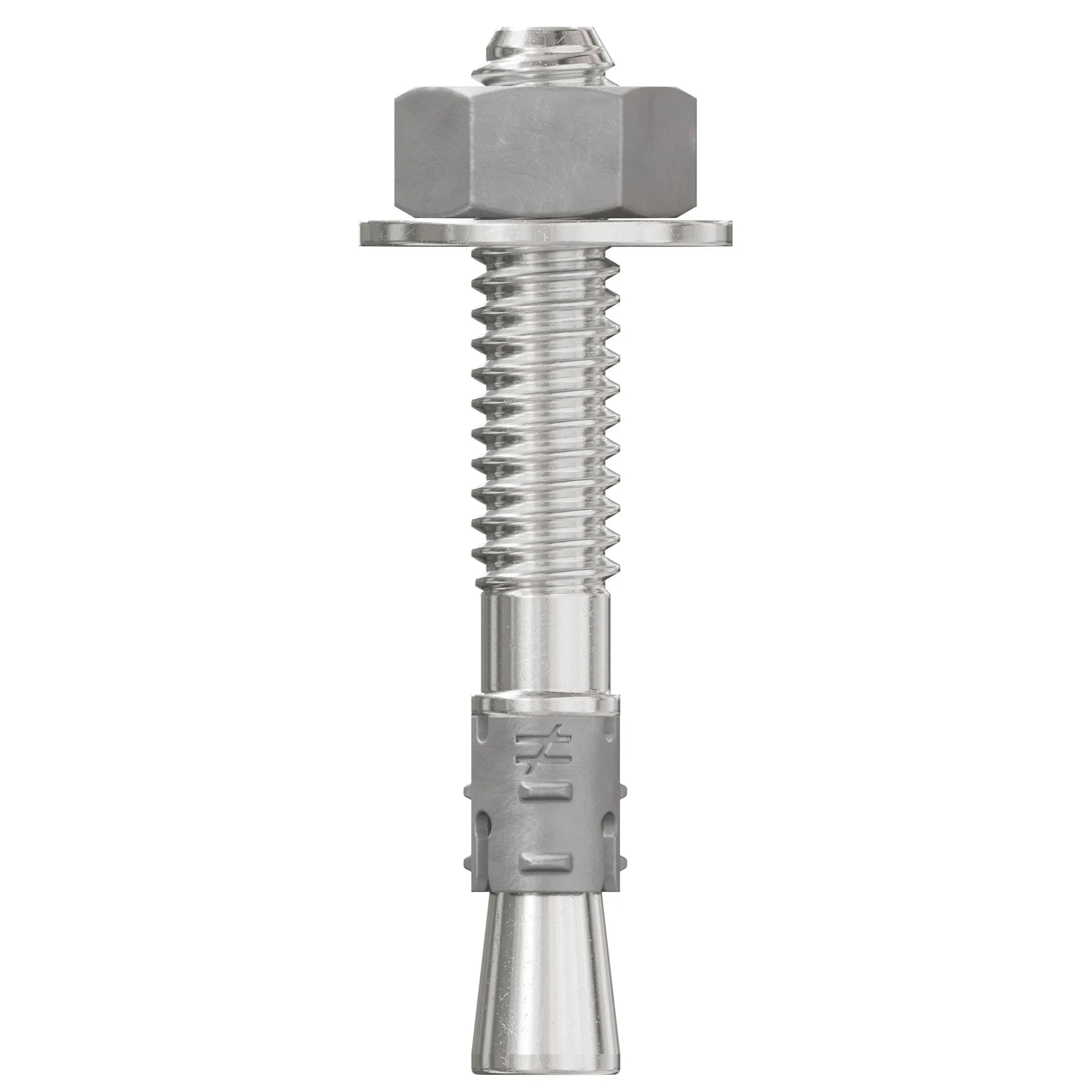

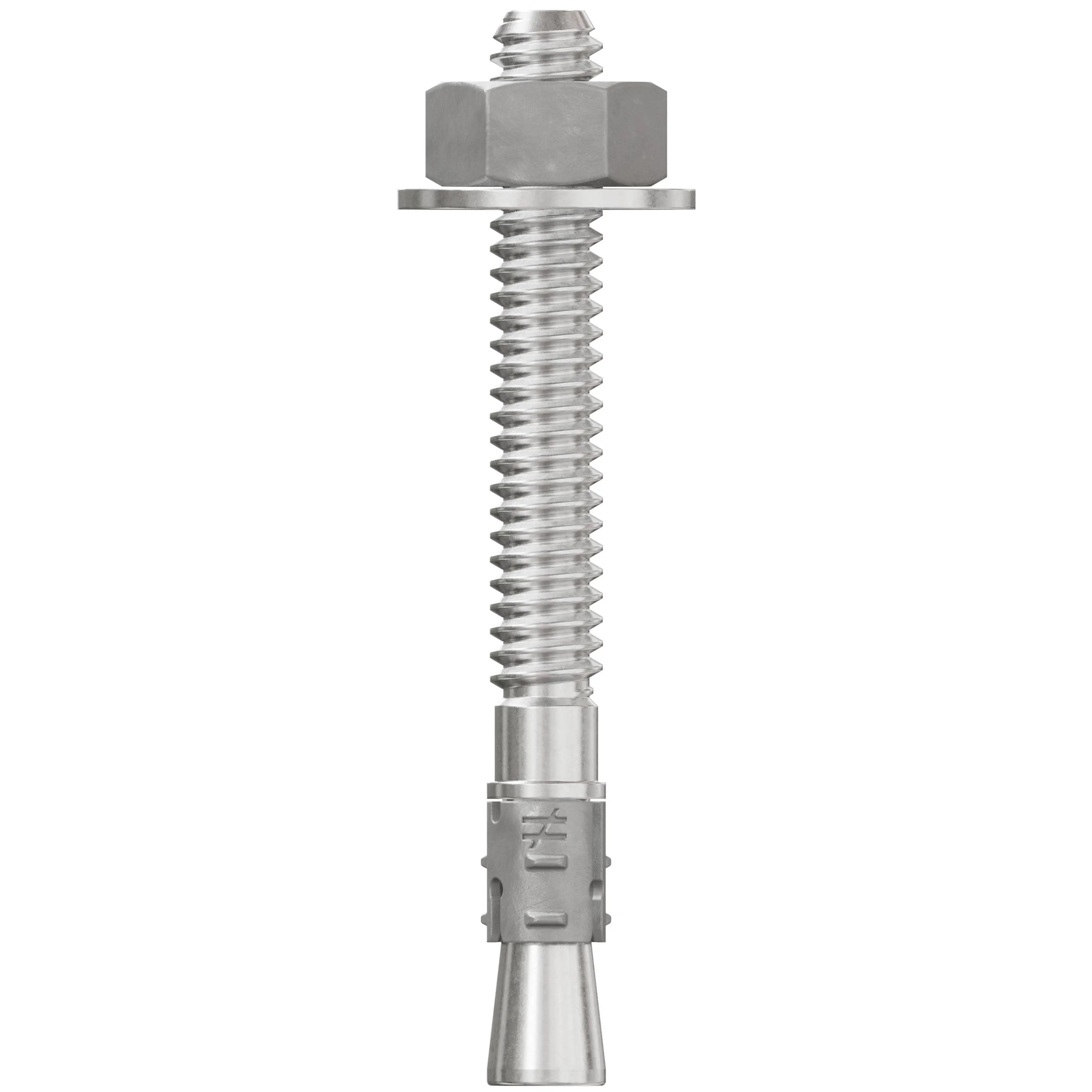

Ancrage à cale Strong-Bolt® 2 — Acier inoxydable 304 3/8 po x 3-3/4 po - 50 boîtes
Ancrage à cale Strong-Bolt® 2 — Acier inoxydable 304 3/8 po x 3-3/4 po - 50 boîtes
Homologué pour les applications en béton fissuré et non fissuré, ainsi que pour la maçonnerie, l'ancrage à expansion à coin Strong-Bolt 2 est un choix optimal pour des performances élevées, même en conditions sismiques et de vents violents. Les doubles reliefs de contre-dépouille sur chaque segment de clip permettent une expansion secondaire en cas de formation d'une fissure croisant l'ancrage ; cette caractéristique augmente considérablement la capacité de l'ancrage Strong-Bolt 2 à supporter la charge en cas d'expansion du trou.
Caractéristiques principales
- Dessus chanfreiné conçu pour éviter la formation de champignons lors de l'installation- Qualifié pour les conditions de charge statique et sismique (catégories de conception sismique A à F)- Convient aux applications horizontales, verticales et aériennes- Qualifié pour une épaisseur de béton minimale de 3 1/4" et une épaisseur de tablier en béton léger sur acier de 2 1/2" et 3 1/4"- Tailles fractionnaires standard (ANSI) : s'adapte aux fixations standard et s'installe avec des tailles de forets et d'outils courantes- Testé selon ACI355.2 et AC193Matériel
- Acier au carbone zinguéInstallation
- - Percez un trou dans le support à l'aide d'un foret en carbure de diamètre égal au diamètre nominal de la cheville à installer. Percez le trou à la profondeur minimale spécifiée et nettoyez-le à l'air comprimé. (Il n'est pas nécessaire de nettoyer le trou en hauteur.) Vous pouvez également percer un trou suffisamment profond pour absorber la profondeur d'ancrage et la poussière de perçage. - Assemblez la cheville avec l'écrou et la rondelle de manière à ce que le haut de l'écrou soit au même niveau que le haut de la cheville. Placez la cheville dans la fixation et enfoncez-la dans le trou jusqu'à ce que la rondelle et l'écrou soient bien serrés contre la fixation. - Serrez au couple de serrage requis.
| Strong-Bolt 2 Diamètre (po) | Taille du foret (po) | Trou de fixation min. (po) | Taille de la clé (po) | Couple de serrage pour l'installation du béton (pi-lbf) Acier au carbone | Couple de serrage pour l'installation du béton (pi-lbf) Acier inoxydable |
|---|---|---|---|---|---|
| 1/4 | 1/4 | 5/16 | 7/16 | 4 | 4 |
| 3/8 | 3/8 | 7/16 | 9/16 | 30 | 30 |
| 1/2 | 1/2 | 9/16 | 3/4 | 60 | 65 |
| 5/8 | 5/8 | 16/11 | 15/16 | 90 | 80 |
| 3/4 | 3/4 | 7/8 | 1 1/8 | 150 | 150 |
| 1 | 1 | 1 1/8 | 1 1/2 | 230 | - |
Prudence
- N'utilisez pas de clé à chocs pour fixer ou serrer l'ancrage Strong-Bolt 2. - Des trous surdimensionnés dans le matériau de base rendront difficile la fixation de l'ancrage et réduiront la capacité de charge de l'ancrage.Informations de conception et tableaux de charges
- Informations sur la conception du Strong-Bolt 2Liens connexes
- Notes techniques et d'installation sur les systèmes d'ancrage - Logiciel Anchor Designer ™ - Ancrages mécaniques de la série 300Pages du catalogue
- CA-2023 (Systèmes d'ancrage, de fixation et de restauration), pages 96–106
